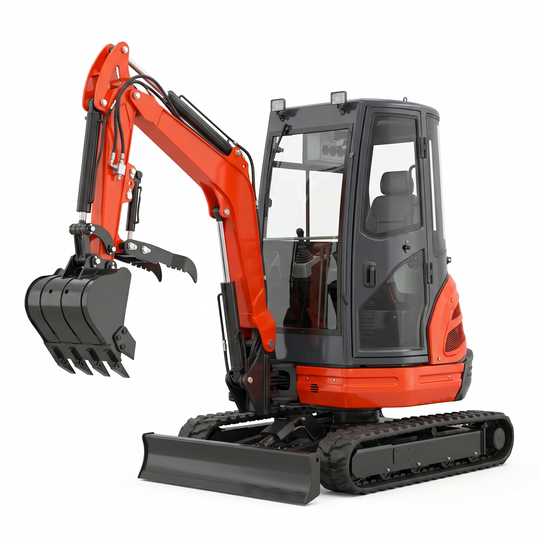

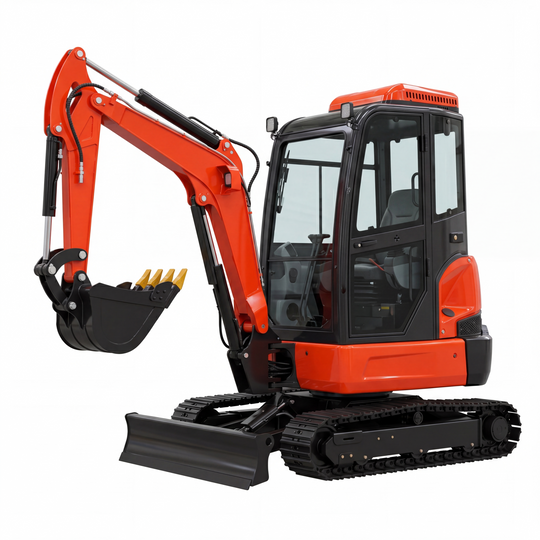

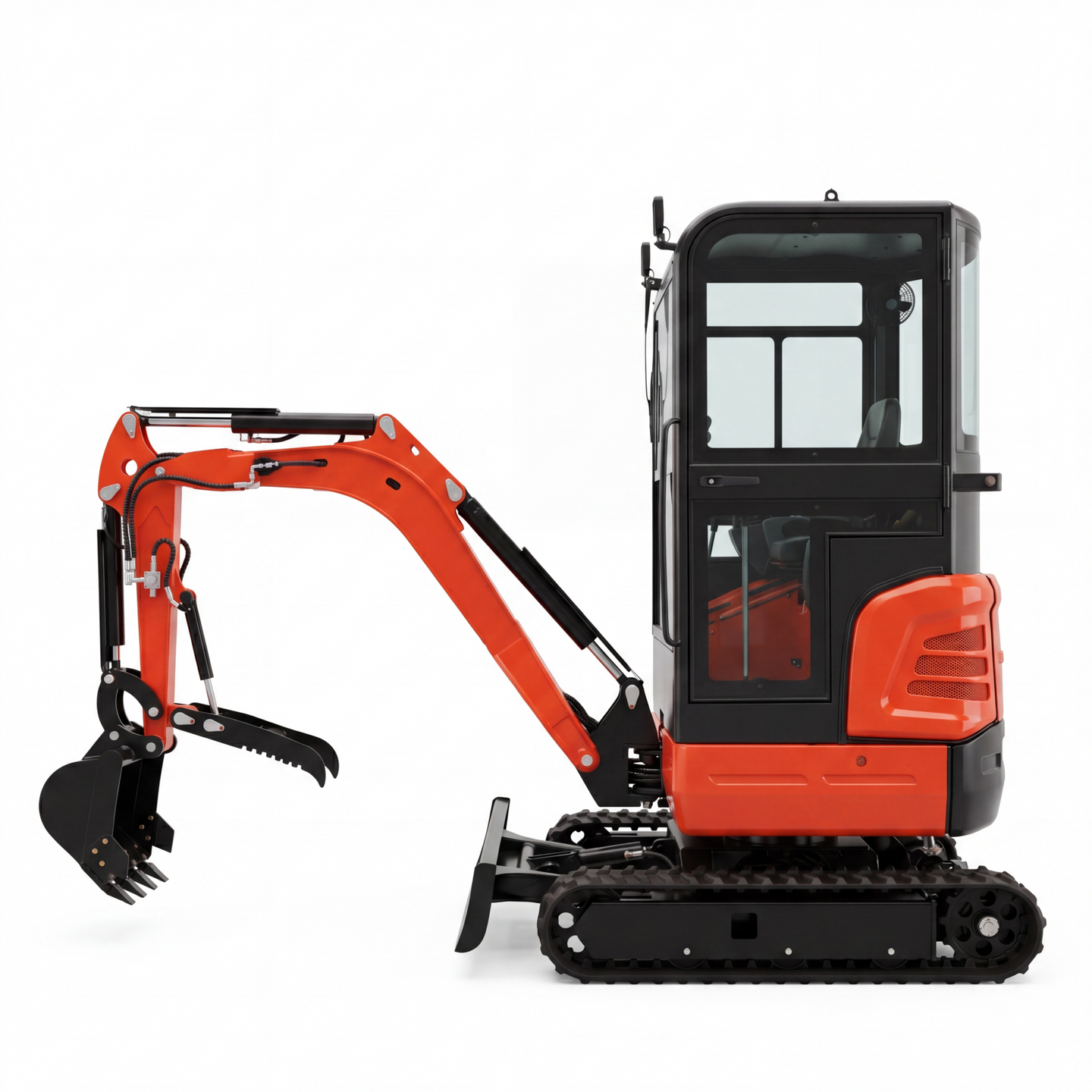

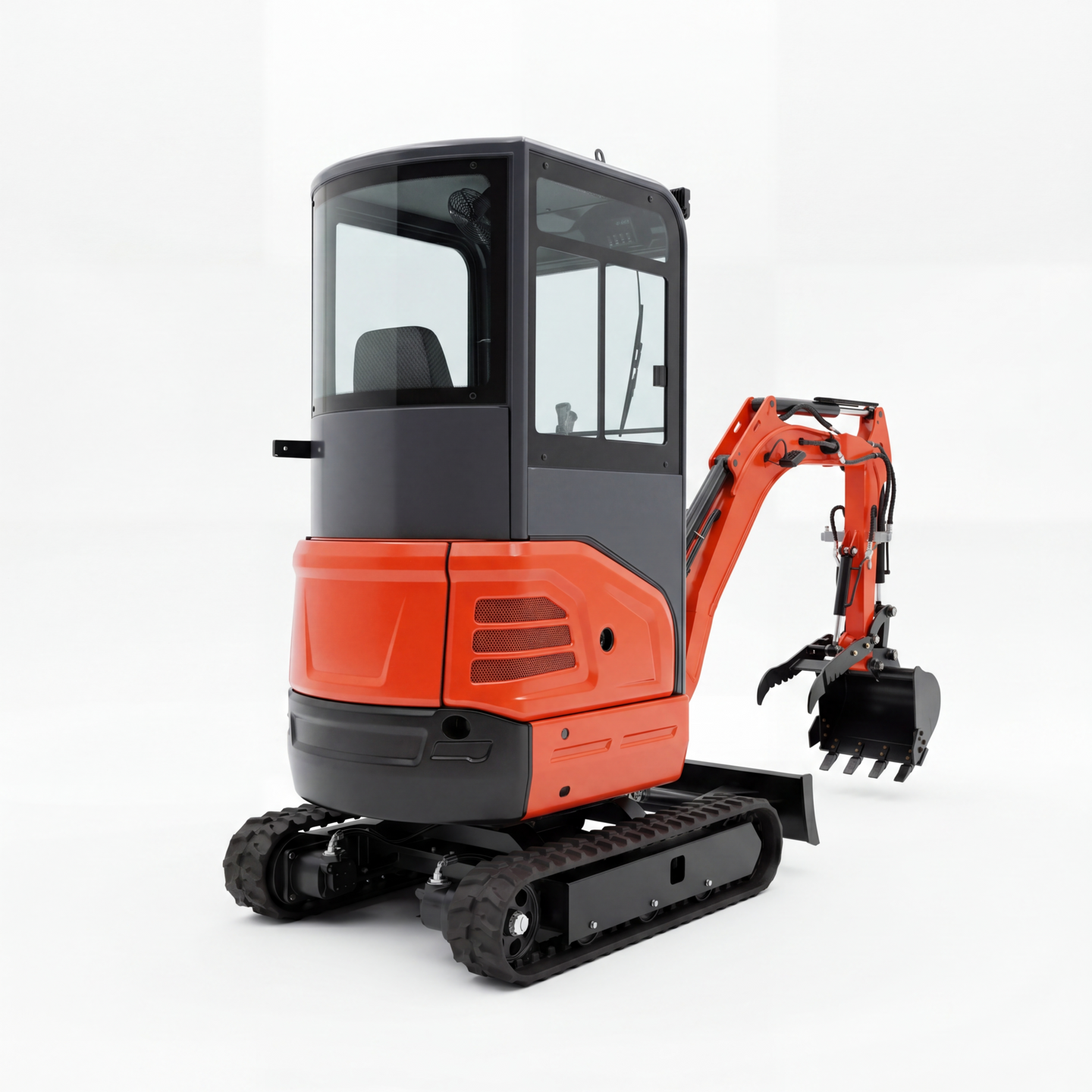

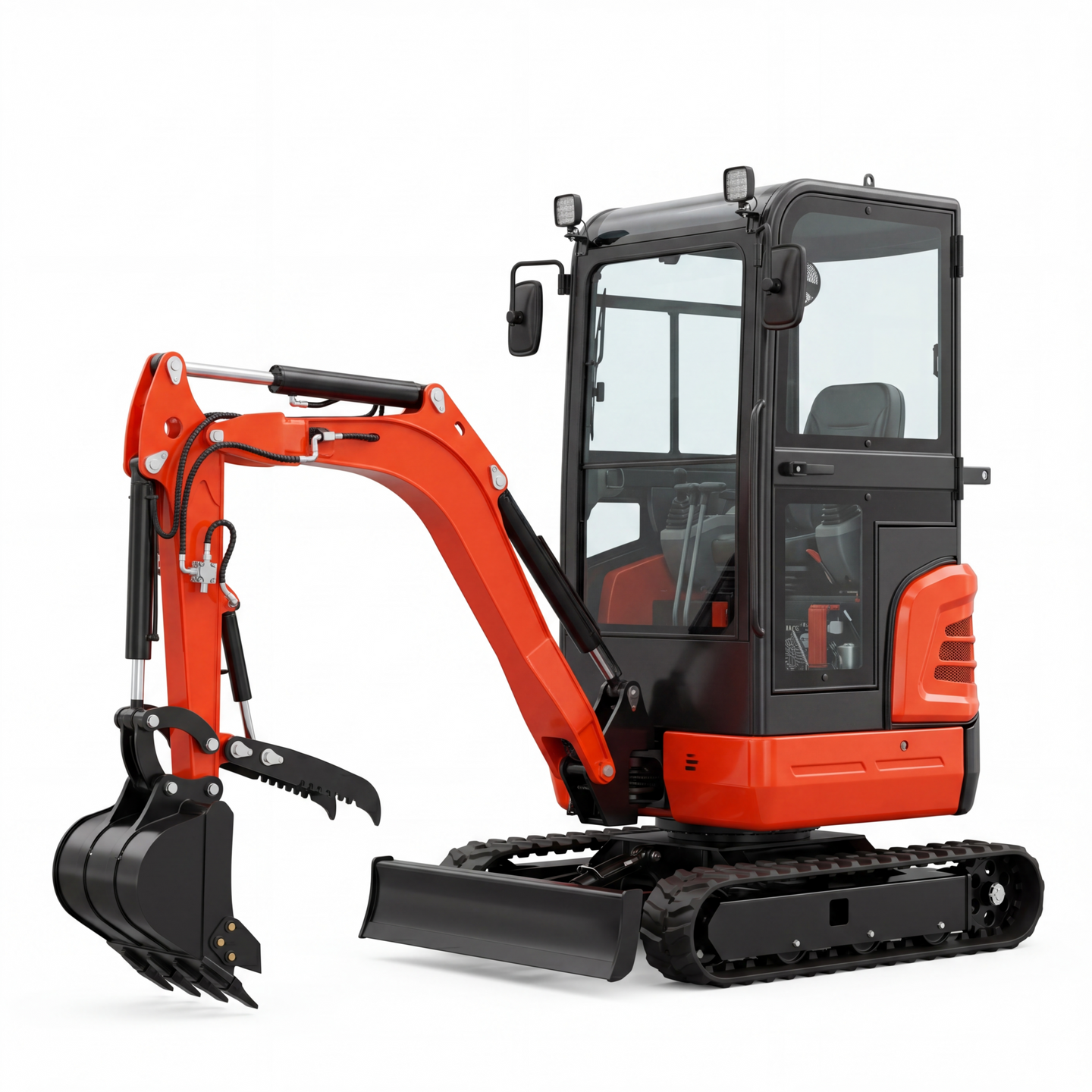

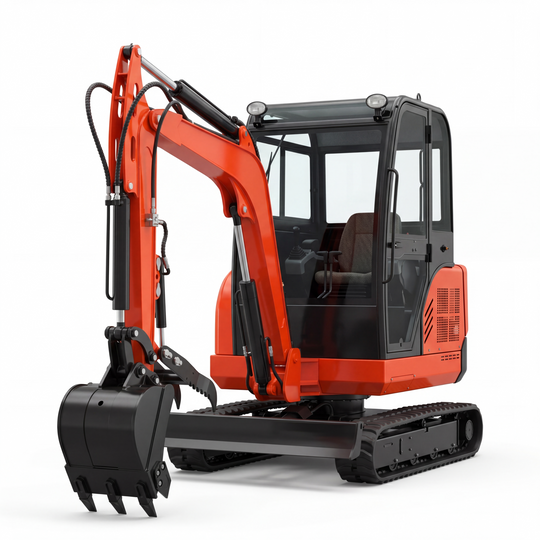

SDLE25 Mini Excavator
The SDLE25 is the flagship of the SDL compact excavator lineup. At 1.5 tonnes with a 3668mm maximum digging radius and 2272mm digging depth, it delivers full-size excavator reach in a compact, site-friendly machine. Powered by the proven Laidong 385 engine at 18.4kW and equipped with a larger 0.03m³ bucket and 18L hydraulic oil tank, the SDLE25 is built for serious earthmoving, trenching, and utility work.
Key Features
- 💪 18.4kW Laidong 385 Engine — High-output diesel at 2800 r/min for demanding excavation tasks
- 📐 Compact & Agile Design — 1200mm overall width, 1000mm body width for versatile site access
- 🔩 Durable Rubber Tracks — 200mm wide, 1400mm long tracks for superior stability and traction
- ⛏️ Superior Digging Power — 2272mm dig depth, 3668mm dig radius — widest reach in the SDL lineup

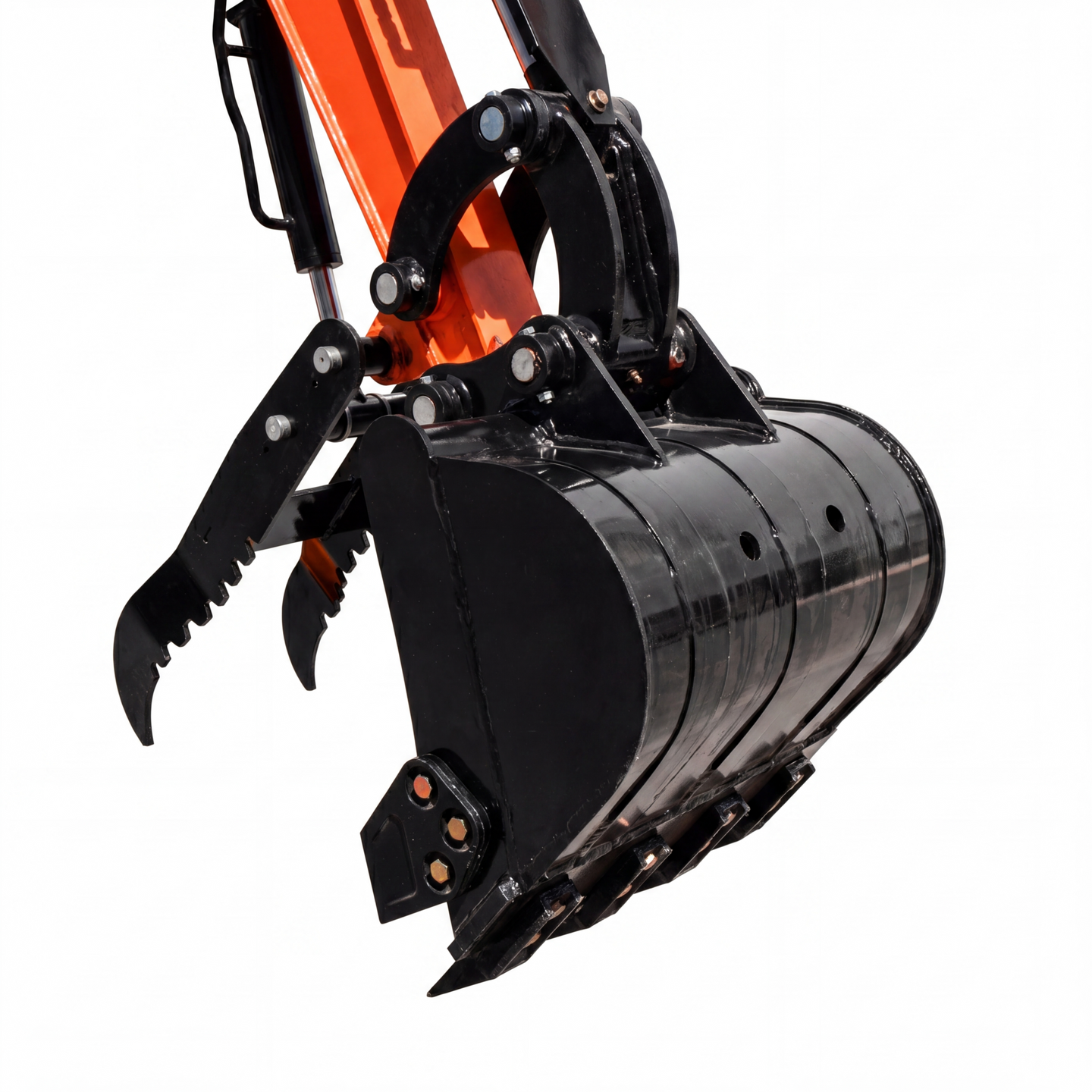

- 🪣 Larger Bucket Capacity — 0.03m³ bucket with 484mm width for higher productivity per cycle
- 🚚 High Unloading Height — 2358mm, ideal for direct truck loading
- 🔧 Taiheng Monoblock Valve — Precise, responsive hydraulic control
- 💧 Large Hydraulic Oil Tank — 18L capacity for extended continuous operation

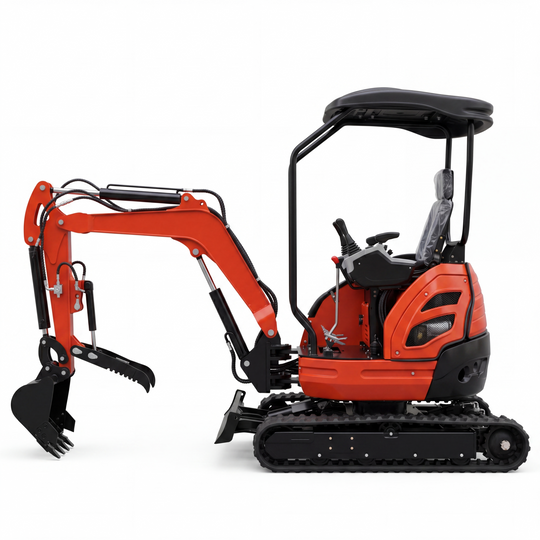

- 🌧️ Waterproof Cab Top / Sunshade Canopy — All-weather operator comfort
- 🔧 Multiple Attachments — Versatile for landscaping, trenching, demolition, and utility work
- 🔄 Full 360° Body Swing — Maximum working flexibility on any site

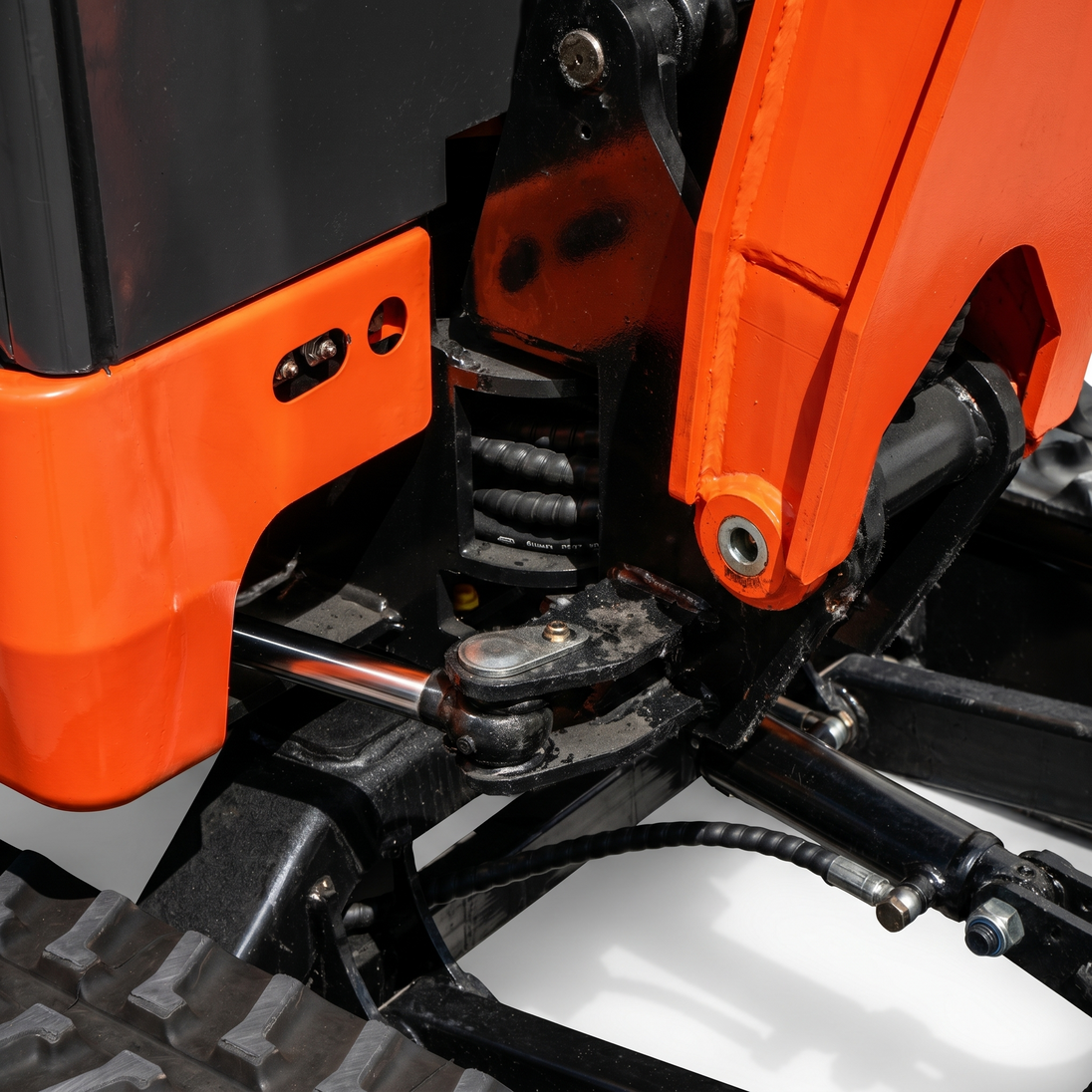

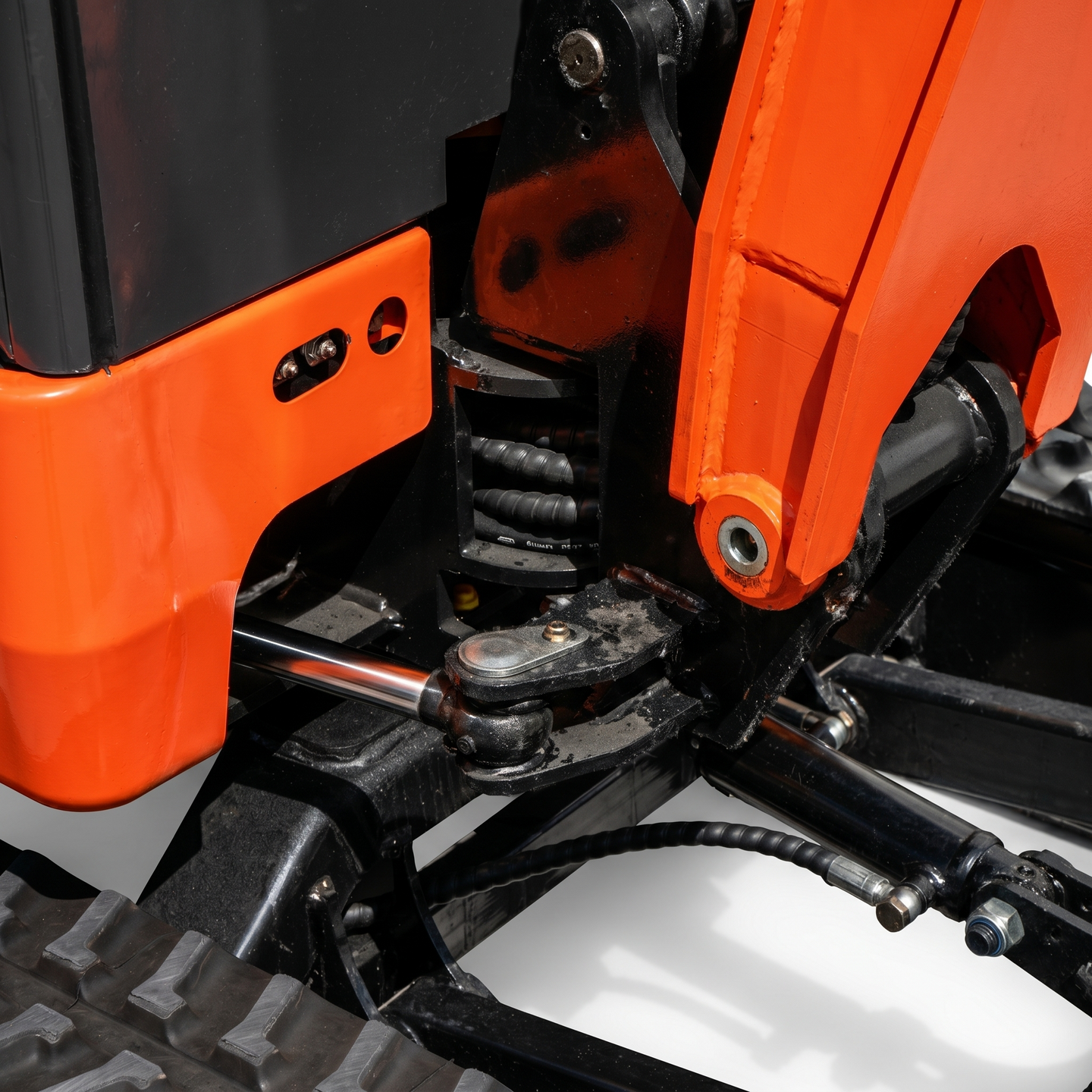

- 🏗️ Boom Swing 45°/45° L/R — Work close to walls and obstacles with ease
Product Specifications
| Parameter | Specification |
|---|---|
| Overall Weight | 1.5 t |
| Engine Brand | Laidong 385 |
| Rated Power | 18.4 kW / 2800 r/min |
| Digging Bucket Capacity | 0.03 m³ |
| Bucket Width | 484 mm |
| Overall Length | 3500 mm |
| Overall Width | 1200 mm |
| Overall Height | 2413 mm |
| Track Width | 200 mm |
| Track Length | 1400 mm |
| Body Width | 1000 mm |
| Travel Speed | 0–1.8 km/h |
| Traveling Motor | RUILI / LIDUN |
| Swing Motor | RUILI / LIDUN |
| Swing Speed | 8 r/min |
| Body Swing Angle | 360° |
| Boom Swing Angle (L/R) | 45° / 45° |
| Max. Digging Radius | 3668 mm |
| Max. Digging Depth | 2272 mm |
| Max. Digging Height | 3218 mm |
| Max. Unloading Height | 2358 mm |
| Body Swing Radius | 820 mm |
| Min. Swing Radius | 770 mm |

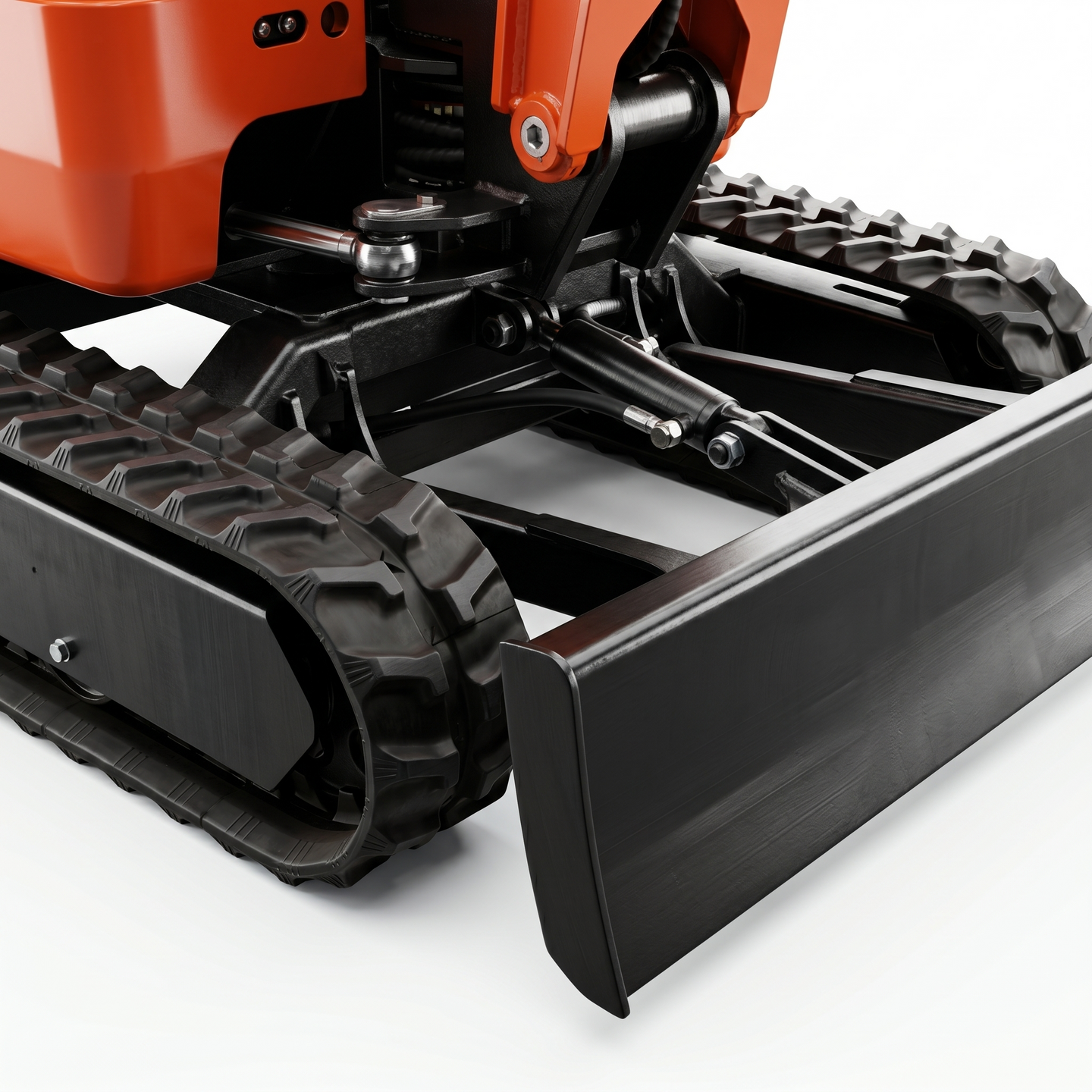

| Max. Dozer Blade Digging Depth | 250 mm |
| Max. Dozer Blade Lifting Height | 170 mm |
| Max. Grade Ability | 15° |
| Hydraulic System | Tianjin Xingzhou Precision Gear Pump + Taiheng Integrated Monoblock Valve |
| Fuel Tank Capacity | 12 L |
| Hydraulic Oil Tank | 18 L |
-
