Excavator Classification: How Machines Are Grouped by Size and Configuration

Excavator classification looks like paperwork until you need it. Manufacturers, dealers and rental companies all sort machines into groups, and those groups determine which specification sheets you compare, which transport you arrange, and which jobs a machine is advertised for. Understanding the classification systems makes every subsequent buying decision faster.

Excavators are not classified in one single way. Four systems operate at the same time: by weight, by undercarriage, by boom configuration, and by application. A single machine sits in one category of each, and the combination describes it precisely.

Classification by Operating Weight

This is the primary system and the one used in most specification tables. Operating weight includes the machine with its standard bucket, a full fuel tank, all fluids, and in most conventions an operator.

The boundaries are not fixed globally. In some markets "compact" covers everything below roughly six tonnes; in others it stops at four. When comparing machines across manufacturers, compare operating weight directly rather than relying on the class label.

Classification by Undercarriage

The second system describes how the machine moves, and it has a larger effect on where a machine can work than weight does.

• Crawler excavators run on tracks, rubber or steel. They offer low ground pressure, good stability and the ability to work on soft or uneven ground. Almost all compact and production machines are crawlers.
• Wheeled excavators run on rubber tyres with an outrigger or blade stabilisation. They travel on roads without a trailer, which is their principal advantage, but they need firm level ground and are less stable when digging at reach.
• Walking and specialised undercarriages exist for extreme terrain, marsh and steep-slope work, but are rare outside specialist applications.

Classification by Boom Configuration

Boom type is where compact and production machines diverge most visibly.

• Conventional (mono) boom — a single member, straight or slightly curved. Standard on production machines and on larger compact units. Simple, strong, maximum breakout force.
• Articulated / knuckle boom — an extra pivot allowing the front end to fold tightly toward the machine. Common on compact machines for working close to walls and obstacles.
• Side-shift / offset boom — the whole boom assembly can move laterally, letting the machine dig parallel to a barrier without repositioning.
• Long-reach boom — extended boom and arm for dredging, embankment work and deep drainage. Reach is gained at the expense of bucket size and breakout force.
• Telescopic boom — used on some wheeled machines and for deep, narrow shaft work.

A machine can be described by more than one of these: an articulated boom with side-shift is a common compact configuration and is often what makes a small machine viable on confined sites.

Classification by Tail Swing

Although not a formal class in every market, tail swing is treated as one in practice because it determines whether a machine can work against a wall.

• Conventional tail swing — the rear of the house extends beyond the track width during rotation. The operator needs clearance behind the machine.
• Minimal or reduced tail swing — the counterweight overhangs only slightly. A compromise between stability and compactness.
• Zero tail swing — the house stays within the track footprint through full rotation. Enables work directly against walls and in corridors, usually at the cost of a longer undercarriage and higher purchase price.

Classification by Application

Dealers and rental catalogues frequently group machines by the work they are bought for rather than by their engineering. These categories overlap heavily with the systems above.

Why the Systems Overlap and Why That Matters

A "2-tonne crawler mini excavator with an articulated boom and minimal tail swing" is a complete description using four systems at once. Any one alone is ambiguous: "2-tonne excavator" could be wheeled or tracked, fixed or articulated boom, conventional or zero tail swing — and those differences matter more to the buyer than the weight figure.

When you read a dealer listing, check that all four are stated. If only the weight is given, the listing is incomplete, and the machine may not be comparable to another of nominally the same class.

Classification Terms That Cause Confusion

• "Mini" versus "compact" — used interchangeably in some markets, and as distinct classes in others. Always check the weight.
• "Midi" — usually the 5–9 tonne band, but not standardised.
• "Excavator" versus "digger" — regional naming for the same machine type, most common in the UK and Ireland.
• "Trackhoe" — a regional term for a tracked excavator, common in North America.
• Model numbers — often encode the approximate weight, but the encoding is manufacturer-specific and should never be assumed.

Using Classification When You Buy

Start with weight class, because it sets capability and transport. Then filter by undercarriage, which sets where the machine can work. Then choose the boom configuration for the obstacle environment — articulated and side-shift for confined sites, conventional for open ground. Finally, decide on tail swing based on whether you regularly work against walls.

That four-step sequence produces a machine description precise enough to compare across manufacturers, and it avoids the common error of buying a machine that is the right weight but the wrong configuration.

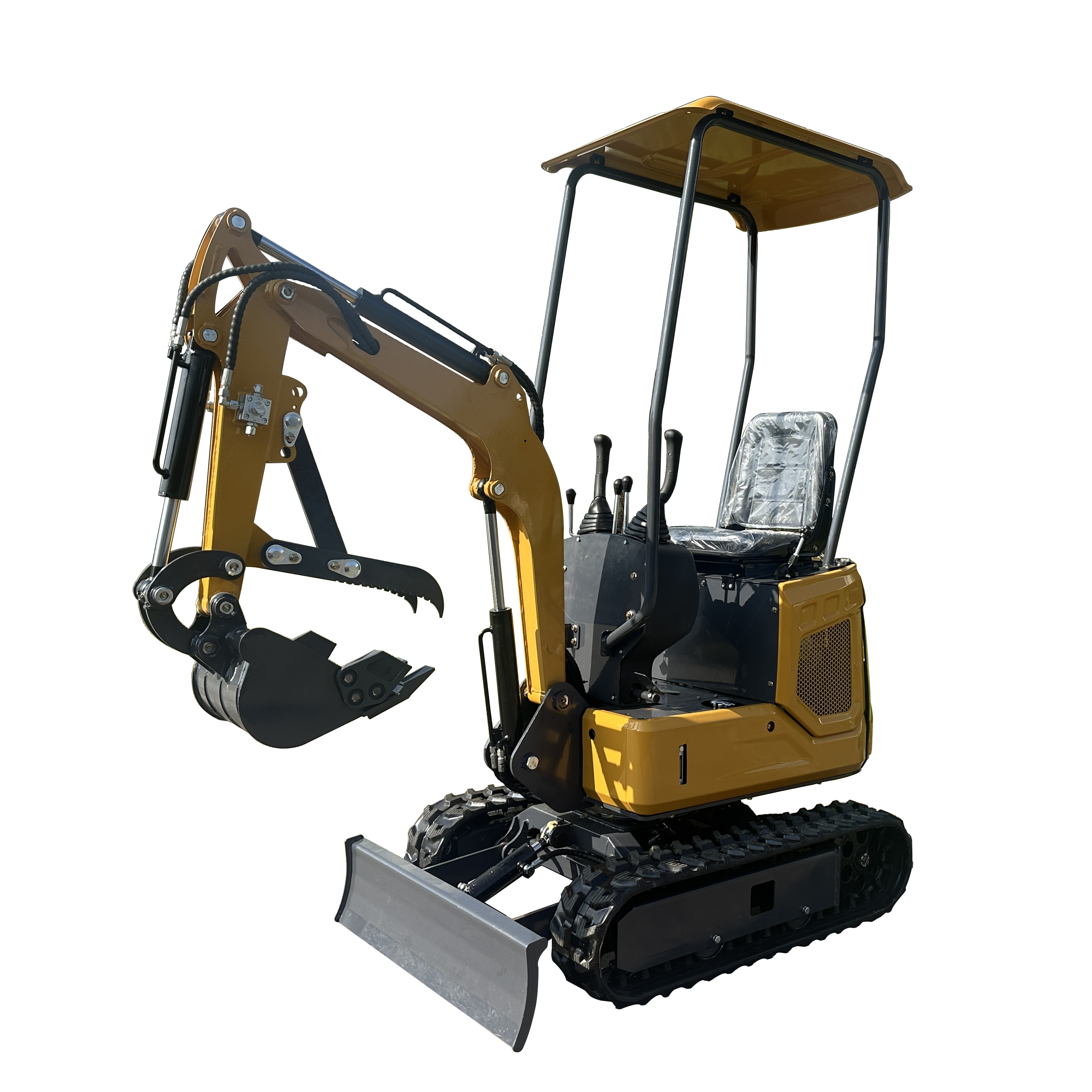

See how the compact classes are represented in practice in the mini excavator collection, including the SDLE08 mini excavator and the SDLE42 compact excavator.
