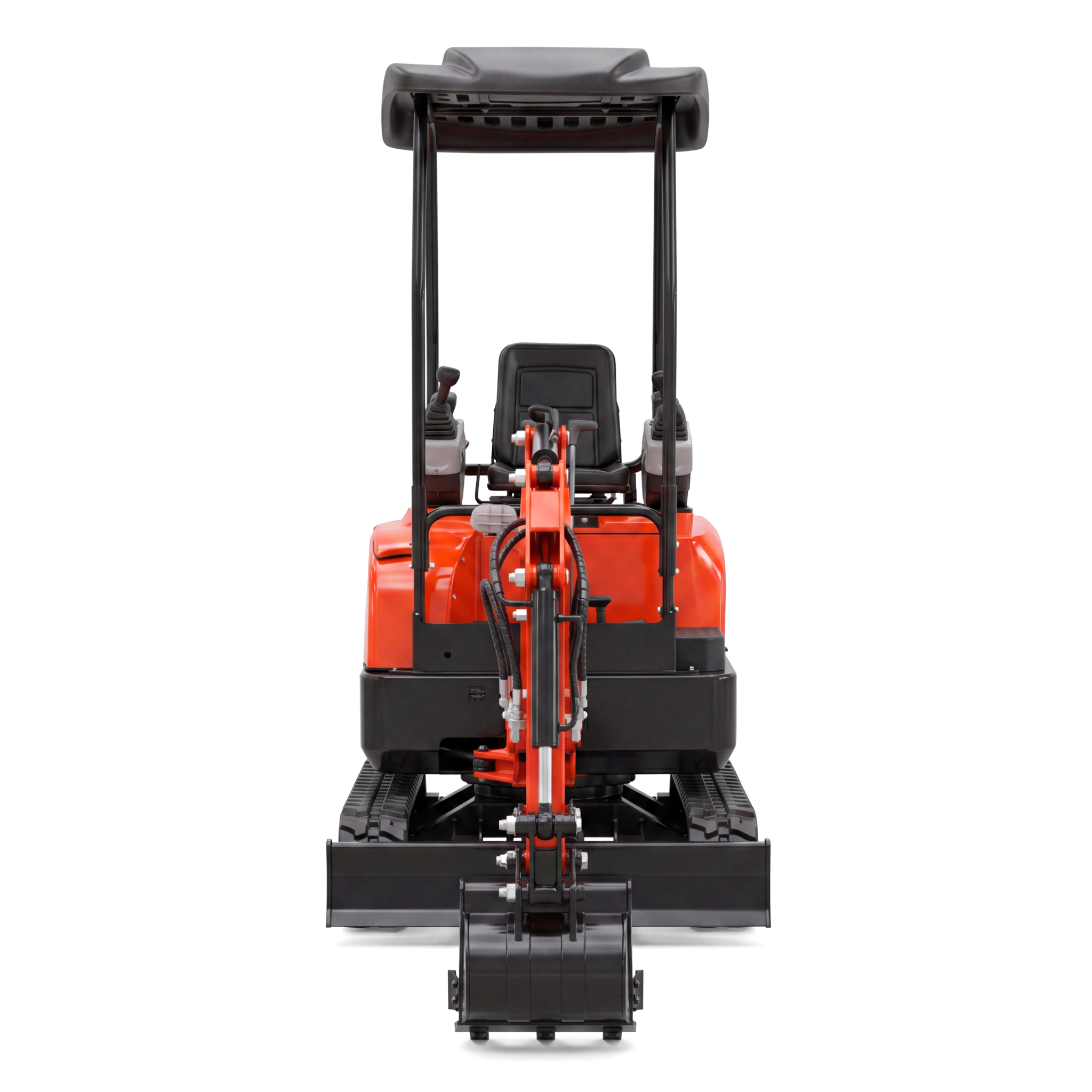

Transport Dimensions vs Working Dimensions: Which Excavator Measurements Matter

Every excavator has two sets of dimensions, and confusing them is one of the most common reasons a machine arrives on site and cannot be used. Transport dimensions describe the machine folded up and ready to travel. Working dimensions describe what it occupies and reaches while actually digging. They differ substantially, and the difference is where planning problems come from.

This comparison explains each set, shows where the gaps between them are largest, and gives a decision rule for which figure to use in a given situation.

What Transport Dimensions Describe

Transport dimensions answer one question: can this machine be moved to the site? They are taken with the front linkage folded into its travel position, the undercarriage retracted if it is expandable, and any removable items such as beacons taken off.

The three figures that matter are transport length, transport width and transport height, plus shipping weight. These determine trailer size, whether an escort or permit is needed, bridge and road restrictions, and whether the machine fits under overhead obstructions on the route.

Transport dimensions are conservative by nature — smaller than the working figures — which is precisely why they are misleading if used for anything else.

What Working Dimensions Describe

Working dimensions answer a different question: can this machine do the job here? They include the machine's extended footprint, its reach and dig depth, its tail swing radius, and its raised-boom height.

These figures are not about getting the machine to the site. They are about whether there is room to swing, whether the machine can reach the far side of the trench, whether the tail will hit the wall behind it, and whether the boom will strike an overhead service.

Side-by-Side Comparison

Where the Gap Is Largest

The differences are not uniform. Understanding which dimensions diverge most helps you know where to be careful.

• Length: The biggest single gap. Folding the linkage typically shortens the machine by roughly a metre on a compact unit, and considerably more on larger machines. Trailer fit and site space can therefore differ by a wide margin.
• Width: Moderate gap on machines with expandable undercarriages, often 100 to 400 mm. Negligible on fixed-frame machines.
• Height: A large gap. Transport height is the cab; working height can be a metre or more higher with the boom raised. This is the critical one for indoor work and overhead cables.
• Weight: Operating weight typically exceeds shipping weight by the mass of fuel, hydraulic oil and the bucket — significant when calculating trailer payload and ground bearing pressure.

The Three Planning Failures These Distinctions Prevent

Failure One: The Machine Fits the Gate but Cannot Work

A contractor buys a machine because its width figure clears a 1.0 m gate. On site it passes through — then cannot work properly because the undercarriage must be extended for stability, and extended it is wider than the space available. The correct approach is to check transport width against the gate and working width against the working space, as two separate requirements.

Failure Two: The Trailer Is Too Short

Transport length is measured bucket included, but the bucket frequently hangs over the front of the deck in practice. If the trailer deck is shorter than the transport length, the overhang may be illegal or unsafe. Measure the deck and the machine, then decide whether the bucket travels on the deck, overhangs, or comes off and travels separately.

Failure Three: Indoor or Under-Height Work Stops

A machine quoted at a cab height of 2.3 m is assumed to fit a 2.5 m opening. Raising the boom adds a metre or more, and the work stops on the first day. Always use working height — boom raised — for any overhead clearance check.

Decision Rule: Which Figure to Use

1. Choosing a trailer or checking a route — use transport dimensions and shipping weight.
2. Checking gate, doorway or corridor access — use transport width, but confirm the machine can be driven through rather than carried.
3. Planning the work area — use working dimensions: extended width, working length, tail swing radius.
4. Checking overhead hazards — use raised boom height, not cab height.
5. Checking ground or floor loading — use operating weight, not shipping weight.
6. Confirming the machine can do the job — use dig depth and reach, with margin.
7. Confirming the machine can be delivered — use transport dimensions and shipping weight.

A Practical Worksheet

Before ordering or hiring, fill in both columns for the machine you are considering. If any figure is unavailable from the dealer, ask for it specifically rather than estimating.

• Transport length, width, height — for the delivery route and trailer
• Shipping weight — for payload and permit calculations
• Working length and extended width — for site space
• Tail swing radius — for rear clearance
• Raised boom height — for overhead clearance
• Dig depth and reach — for job feasibility
• Operating weight — for ground bearing and floor loading

Why Dealers Quote Different Figures

Part of the confusion is that different documents serve different purposes. A sales brochure may lead with working figures because they look impressive. A transport quote will use shipping figures because they determine cost. Neither is wrong, but comparing them without noticing the change is.

The remedy is simple: whenever you read a dimension, ask which state it describes. That single habit removes most of the surprise from machine delivery and setup.

For machines with published figures for both states, review the mini excavator collection, and compare the compact SDLE15 mini excavator with the larger SDLE32 mini excavator.
