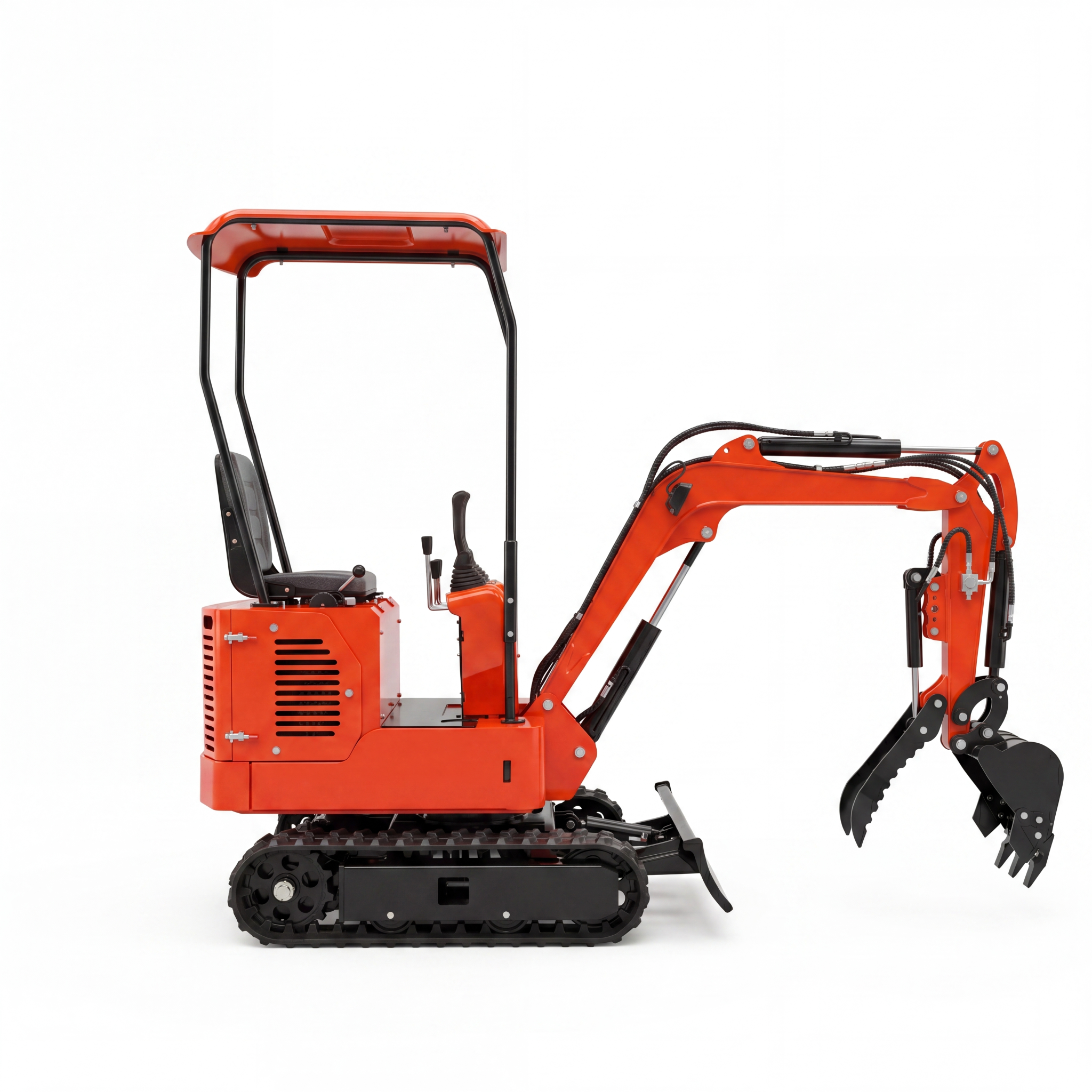

How to Measure Excavator Height Before You Move It
A machine that fits the job but not the route is a wasted delivery. Measuring an excavator's height properly takes about fifteen minutes and prevents the two most expensive failures in compact plant ownership: arriving at a site the machine cannot enter, and loading a trailer that puts the combined outfit over a legal or physical limit.
This is the procedure, from the specification sheet through to the physical check on the day.
Step 1: Get the right figure from the specification sheet
Locate transport height, not overall height and not maximum dig height. Transport height is measured with the boom, dipper and bucket lowered into the travel position, and it is the figure that applies whenever the machine is moving. If the sheet only gives overall height, treat it as a worst case and verify physically — overall height is usually measured to the highest fixed point, which may be above the cab.
Confirm which configuration the figure applies to. A cabbed machine and a canopy machine of the same model have different heights, and a machine with a folding or removable canopy may have two published figures.
Step 2: Measure the machine, do not trust the sheet alone
Specification sheets are produced for a standard configuration and do not account for wear, aftermarket cabs, beacon bars, exhaust modifications or a bucket resting in a different position. Measure the actual machine.
- Park on level, firm ground and lower the boom, dipper and bucket fully into travel position.
- Use a straightedge across the highest point of the cab, canopy or beacon, held level.
- Measure vertically from the ground to the underside of the straightedge at both ends and take the higher reading.
- Record the figure in metres and in feet if you work with both.
- Photograph the setup so anyone quoting later sees exactly what was measured.
Measuring with a tape held freehand is the usual source of error, because the tape leans. A straightedge and a level, or a laser distance measurer held square, is far more reliable.
Step 3: Measure the route, not just the destination
Work along the entire path the machine will travel and record the lowest overhead obstruction at each point. Typical culprits, in order of how often they are missed:
- Doorway and barn lintels, especially on older agricultural buildings.
- Carports, covered walkways and bin stores.
- Overhead service cables and telephone drops.
- Tree branches, which move and are easy to underestimate.
- Sprinkler heads, light fittings and roller-door tracks inside buildings.
- Bridge and tunnel limits on the road route.
Measure at the tightest point of each obstruction, not at its centre. Lintels sag, doors hang out of square, and the lowest point is rarely where you expect.
Step 4: Apply a clearance margin
Never work to zero clearance. Ground is rarely level, tyres and tracks compress unevenly, and a loaded trailer settles. A 100 mm margin is the practical minimum for open-air routes; 150 mm or more is sensible for internal doorways where the machine will be driven slowly but cannot manoeuvre once committed.
| Situation | Suggested margin |
|---|---|
| Open-air route, firm level ground | 100 mm |
| Internal doorway or barn entry | 150 mm |
| Soft or uneven ground | 200 mm |
| Under overhead cables | Follow the local exclusion distance, often well over 1 m |
| Bridge or tunnel with a signed limit | Treat the sign as absolute; no margin needed, no margin allowed |
Step 5: Add the trailer if you are transporting
The combined height on the road is the trailer deck height plus the machine transport height, not the machine height alone. A low-bed trailer keeps the combined figure close to the machine height; a standard flatbed can add 600 mm or more. Measure from the ground to the highest point of the loaded machine, and check the result against every bridge and tunnel on the route before departure.
Remember also that the bucket may need to be removed or repositioned to achieve the lowest possible transport height, and that a bucket laid on the deck beside the machine does not count toward height but does count toward width and payload.
Step 6: Re-check on the day with the machine configured to travel
The most common failure is procedural: someone measures the machine with the boom raised, or measures a different machine from the one that arrives. On the day, before moving, confirm three things — the boom is fully lowered, the bucket is in travel position, and the cab or canopy is in the configuration that was measured. If a beacon or a removable canopy is fitted, decide before you measure whether it travels in place or comes off.
Pre-move checklist
- Transport height confirmed from the sheet for the exact configuration.
- Physical measurement taken with a straightedge and levelled.
- Route surveyed and the lowest obstruction recorded.
- Clearance margin applied for the ground and setting.
- Trailer deck height added if transporting.
- Boom and bucket confirmed lowered for travel.
- Overhead cables identified and the exclusion distance established.
- Signed bridge and tunnel limits checked against the combined figure.
If it does not fit
Do not attempt it. Removing a canopy, deflating tyres or digging out under an obstruction are all common improvisations and all carry real risk. Either re-route, hire a machine from the class below, or hire a specialist low-height machine for that section of the work. The cost of a second delivery is always lower than the cost of a damaged lintel, a severed cable or an overturned machine.
