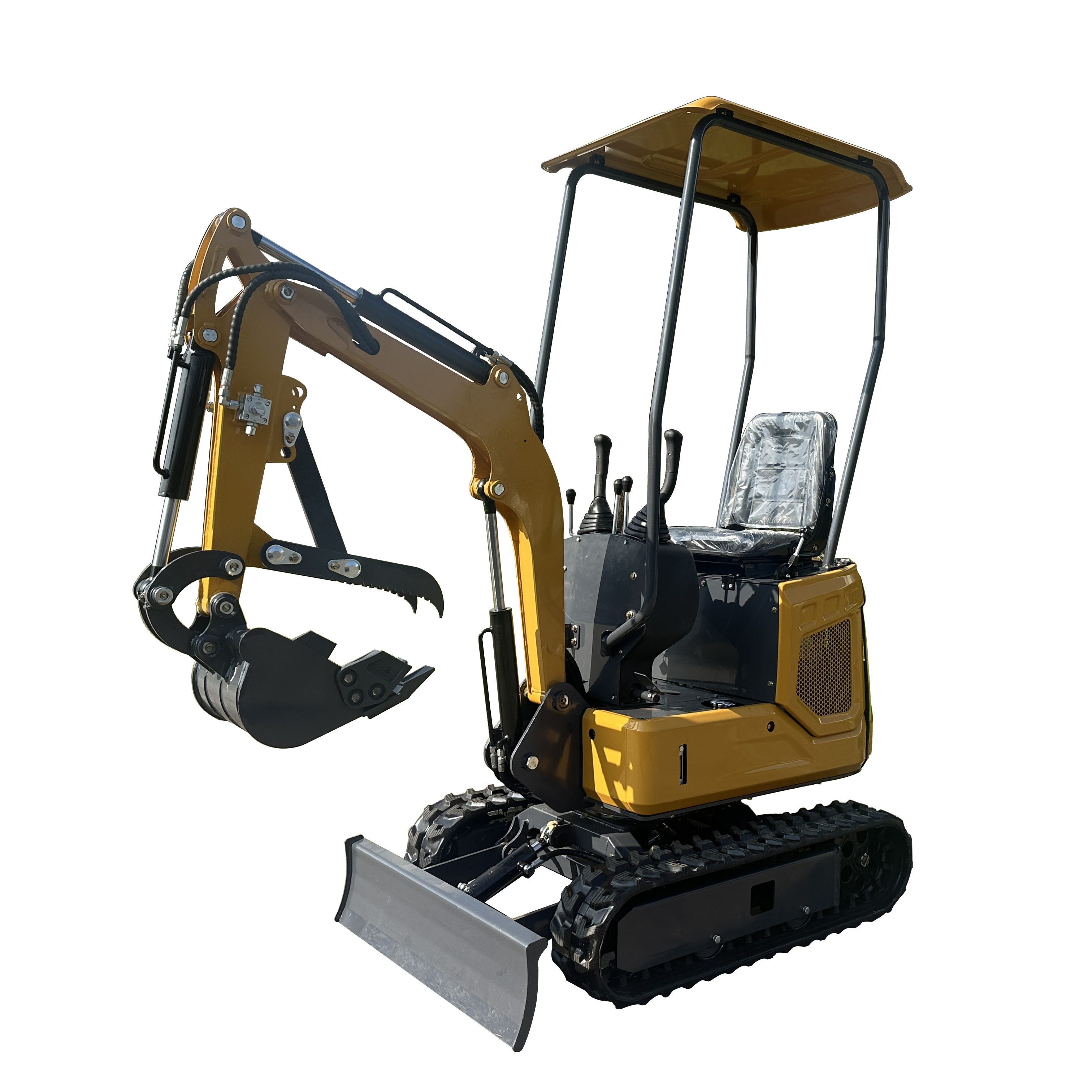

Excavator Dig Depth: What the Spec Means and How Deep Machines Really Dig
Maximum dig depth is the first number buyers look at and the one most often misunderstood. It is a best-case figure, measured under conditions that rarely exist on a working site, and treating it as the depth the machine will achieve is how contractors end up short of spec on the day it matters.
This article explains how dig depth is measured, what changes it in practice, what the realistic figures are by size class, and — importantly — why digging to the limit of a machine is not the same as digging safely.
How Maximum Dig Depth Is Measured
The published figure is taken with the machine on firm, level ground, resting on its tracks or stabilisers, with the standard arm and a specified bucket. It is measured from the ground line to the tip of the bucket teeth at the deepest point the linkage can reach.
That definition hides four assumptions, and each one moves the real figure:
| Assumption in the spec | What happens on site | Effect on real depth |
|---|---|---|
| Level, firm ground | Ground is often uneven or soft | Reduces usable depth and stability |
| Standard arm fitted | Long-arm variants are common | Long arm increases depth, reduces breakout |
| Specified bucket | Buckets get swapped | Wider or tilt buckets change reach and depth |
| Tracks in extended position | Tracks retracted for access | Stability falls; safe depth falls with it |
The practical rule: plan on roughly 200–300 mm less than the published figure. That margin absorbs the ordinary imperfections of a working site and keeps you inside the machine's stable working range.
Realistic Dig Depth by Size Class
Figures below are indicative industry ranges for standard-arm machines. They are ranges, not specifications for any particular model.
| Class | Published max depth | Practical planning depth | Typical use |
|---|---|---|---|
| 0.8 t | 1.6–1.9 m | 1.4–1.6 m | Garden drainage, shallow services |
| 1 t | 1.8–2.1 m | 1.6–1.8 m | Driveways, shallow footings |
| 1.5 t | 2.1–2.3 m | 1.9–2.1 m | Service trenches, general groundworks |
| 2 t | 2.2–2.6 m | 2.0–2.3 m | Footings, deeper drainage |
| 2.5–3 t | 2.5–2.9 m | 2.3–2.6 m | Soakaways, foundation work |
| 3.5 t | 2.9–3.2 m | 2.7–3.0 m | Deep drainage, attenuation |
| 5–8 t | 3.5–4.5 m | 3.2–4.2 m | Deep services, basements |
Notice how slowly depth increases with machine size. Going from 1 tonne to 3.5 tonnes roughly triples the weight and adds about a metre of depth. That is why the right response to "I need more depth" is often a larger class of machine rather than a bigger machine within the same class.
Depth and Safety Are Different Questions
A machine that can physically reach 2.5 m can dig a 2.5 m trench. Whether that trench is safe to enter, or safe to work beside, is a separate matter entirely — and it is governed by the ground, not by the machine.
Two distinct risks appear as depth increases:
- Collapse. Soil has limited stand-up time. In granular soils a vertical face can fail with no warning at shallow depths; in cohesive clay it may stand longer, which makes it more dangerous because it appears stable.
- Machine instability. Digging at maximum depth places the machine near the edge of its stability envelope, especially with tracks retracted or on sloping ground.
Practical Depth Rules
Exact requirements vary by jurisdiction and by soil classification, so treat the following as general orientation and check the applicable rules where you work:
- Do not rely on a vertical face. Untrenched vertical faces in granular soil can fail at well under two metres.
- Slope, bench or shore. Any of the three reduces risk; which is appropriate depends on depth, soil and how long the trench is open.
- Keep spoil and plant back from the edge. Spoil piles and machine weight beside a trench are among the most common causes of collapse.
- Do not assume yesterday's trench is today's safe trench. Water ingress, vibration and drying change stability hour to hour.
- Any trench deep enough that a person's head is below ground level warrants a specific control measure. That is the practical threshold most sites use.
Machine Stability When Digging Deep
Working at maximum depth pushes the machine towards its limits. Manage it:
- Extend the tracks where the undercarriage is variable-gauge and access permits.
- Lower the dozer blade as an outrigger to widen the support base.
- Work over the front where possible rather than over the side.
- Keep the load close — lifting at maximum radius while digging deep is the combination that tips machines.
- Track along the trench rather than across it, so the support base is aligned with the load.
- Avoid digging downhill of the tracks where the slope undermines the support.
Specifying Depth Properly
When you are choosing a machine against a depth requirement, work through this list:
- Identify the deepest recurring task, not the deepest possible one.
- Add 200–300 mm of planning margin to the published figure.
- Confirm which arm configuration the quoted machine has.
- Confirm the bucket that ships with it.
- Check depth at the reach you need — depth at minimum radius and depth at working radius are different.
- Confirm the machine's stability arrangements: track gauge range, blade, counterweight options.
- Check what trench support you will need at that depth, and whether the machine can work alongside it.
Common Mistakes
- Shopping to the published maximum. Leaves no margin for real ground.
- Comparing depth across different arm configurations. Meaningless.
- Fitting a wider bucket and assuming depth is unchanged. It is not.
- Digging with tracks retracted for access. Reduces stability at the moment you need it most.
- Assuming a machine that reaches a depth can safely work at it. Reach and stability are separate.
Dig depth is a useful specification, but only when you know what it measures. Read it as a ceiling under ideal conditions, plan below it, and treat trench safety as a separate calculation governed by the ground.
