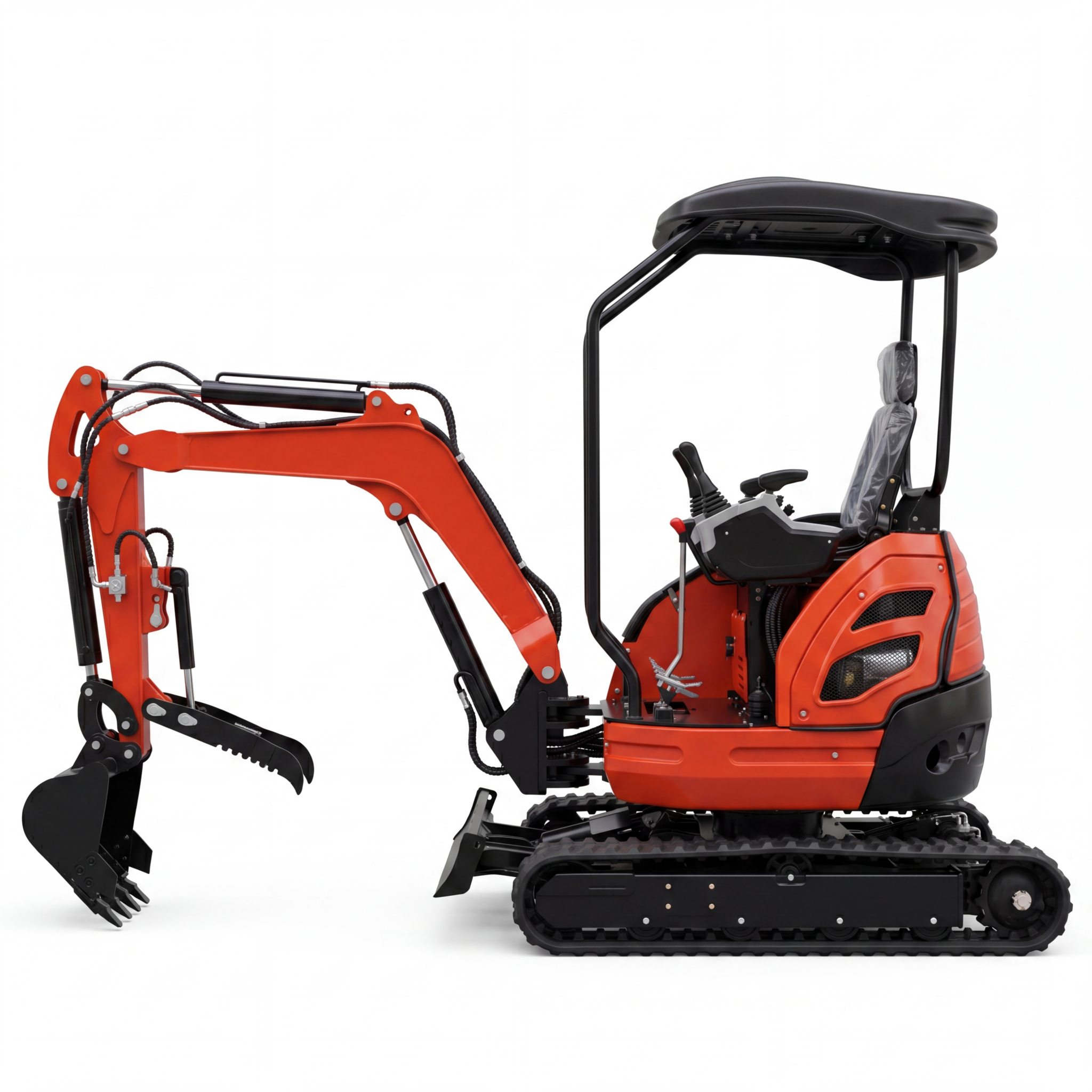

Excavator Bucket Connection Types: Pin-On, Manual Coupler and Hydraulic Coupler Explained

Every excavator bucket has to attach to the dipper somehow, and the way it does so determines how fast you change tools, how much the linkage wears, and how much of the machine's breakout force actually reaches the cutting edge. There are three families of connection in common use — pin-on, mechanical coupler and hydraulic coupler — and picking between them is one of the few decisions that affects daily productivity on almost every job.

This guide explains how each system works, what it costs to live with, and where each one is the right answer. Understanding the differences also helps you avoid the most common buying mistake: ordering an attachment in the wrong mounting standard and discovering it on site.

Pin-On: The Original Direct Mount

In a pin-on system the bucket is bolted straight to the dipper nose and to the link that transfers cylinder force. Two hardened pins pass through machined bosses, and the connection is as rigid as the machine itself. There is no intermediate hardware, no play, and no energy lost in a coupler body.

The trade-off is time. Changing buckets means driving the pins out, which requires a hammer, a punch, a second person and typically ten to twenty minutes on a compact machine. Pins seize if they are not greased, and seized pins turn a quick change into an angle-grinder job.

Mechanical Coupler: Semi-Automatic Change

A mechanical coupler is a welded or bolted frame that stays on the dipper permanently. It hooks the bucket's front pin and then clamps the rear pin with a wedging mechanism, usually tightened with a spanner or a tommy bar. Changing attachments takes two to five minutes and needs no hydraulics.

The coupler adds weight at the dipper nose and moves the bucket slightly further from the machine, which reduces breakout force by a small but real margin. It also introduces a wear point: the wedge and hook must be adjusted as they bed in, or the bucket will rattle.

Hydraulic Coupler: Change From the Cab

A hydraulic coupler works on the same hook-and-clamp principle but the wedge is driven by a hydraulic cylinder fed from the machine's auxiliary circuit. The operator releases the bucket, drops it, picks up the next tool and locks it without leaving the seat — often in under thirty seconds.

This is the system that changes how a crew works, because a machine with a hydraulic coupler can realistically carry four tools to a job and use all of them. The costs are the highest purchase price, the need for an auxiliary hydraulic line, and the requirement that every attachment carry a matching pick-up bar.

Head-to-Head Comparison

Notice that the performance penalty of a coupler is modest. The real difference is the number of tool changes you can justify in a working day.

Mounting Standards and Why They Matter

The connection is only half the problem — the dimensions must match too. Within a weight class, pin diameter, pin centres (the distance between the two pins) and the dipper nose width vary between brands. A bucket built for one manufacturer's 2-tonne machine will often not fit another's, even though both are described as compact.

Standardise on one mounting interface across your fleet wherever possible. A yard where every machine uses the same pin centres and the same pick-up bar can share every attachment, which is worth far more than a marginal saving on one bucket.

Direct Mount vs Coupler-Ready Buckets

A bucket intended for pin-on use has bosses sized for the dipper and link. A bucket intended for a coupler carries a single pick-up bar at the top and a pin at the bottom, and it will not bolt directly to a dipper without an adaptor. Buying the wrong type is the single most common attachment ordering error.

Choosing the Right System: A Practical Checklist

• Count how many times your crew changes attachments in an average day — under two favours pin-on, over four favours hydraulic.
• Confirm your machine has a free auxiliary service with sufficient flow before ordering a hydraulic coupler.
• Weigh the coupler against your machine's lift chart; nose weight reduces safe lift at full reach.
• Measure pin diameter, pin centres and dipper width on your own machine rather than trusting the class name.
• Decide whether every new bucket you buy must carry a pick-up bar, and standardise on yes or no.
• Budget for the extra hoses, fittings and possible diverter valve on a hydraulic installation.
• Add a daily check for coupler lock engagement to the pre-start routine and record it.

Safety Considerations Across All Three

Every connection system has one failure mode in common: an attachment that releases unintentionally. With pin-on, the risk is a pin that walks out because the retaining bolt failed. With couplers, the risk is a wedge or hydraulic lock that was never fully engaged.

Mitigate all three the same way — a visual confirmation of the lock after every change, a deliberate shake-out over the ground before lifting anyone or anything, and a written pre-start check. Most jurisdictions also require the coupler to retain the bucket even if hydraulic pressure is lost, which is a specification question worth asking at purchase.

Which One Should You Buy?

If you run one machine with two buckets and change tools weekly, pin-on remains the cheapest and stiffest answer. If you run one machine with four tools and change them several times a day, a hydraulic coupler pays for itself in recovered hours within a season. The mechanical coupler sits in the middle and suits crews that want flexibility without the plumbing.

For most compact-machine owners adding a second or third attachment, the semi-automatic mechanical coupler is the practical starting point: it unlocks tool sharing at a fraction of the hydraulic system's cost.
