Mini Digger Track Width: How to Measure, Specify, and Match Site Access
A mini digger can look compact in a photograph and still fail to reach the work area because one dimension was measured incorrectly. Track width is often the source of that mistake. Buyers sometimes read it as the full width of the machine, while operators may mean the width of one rubber track shoe. For a contractor, landscaper, or property owner, the distinction affects gate access, trailer loading, stability, and whether the machine can work beside an existing wall.

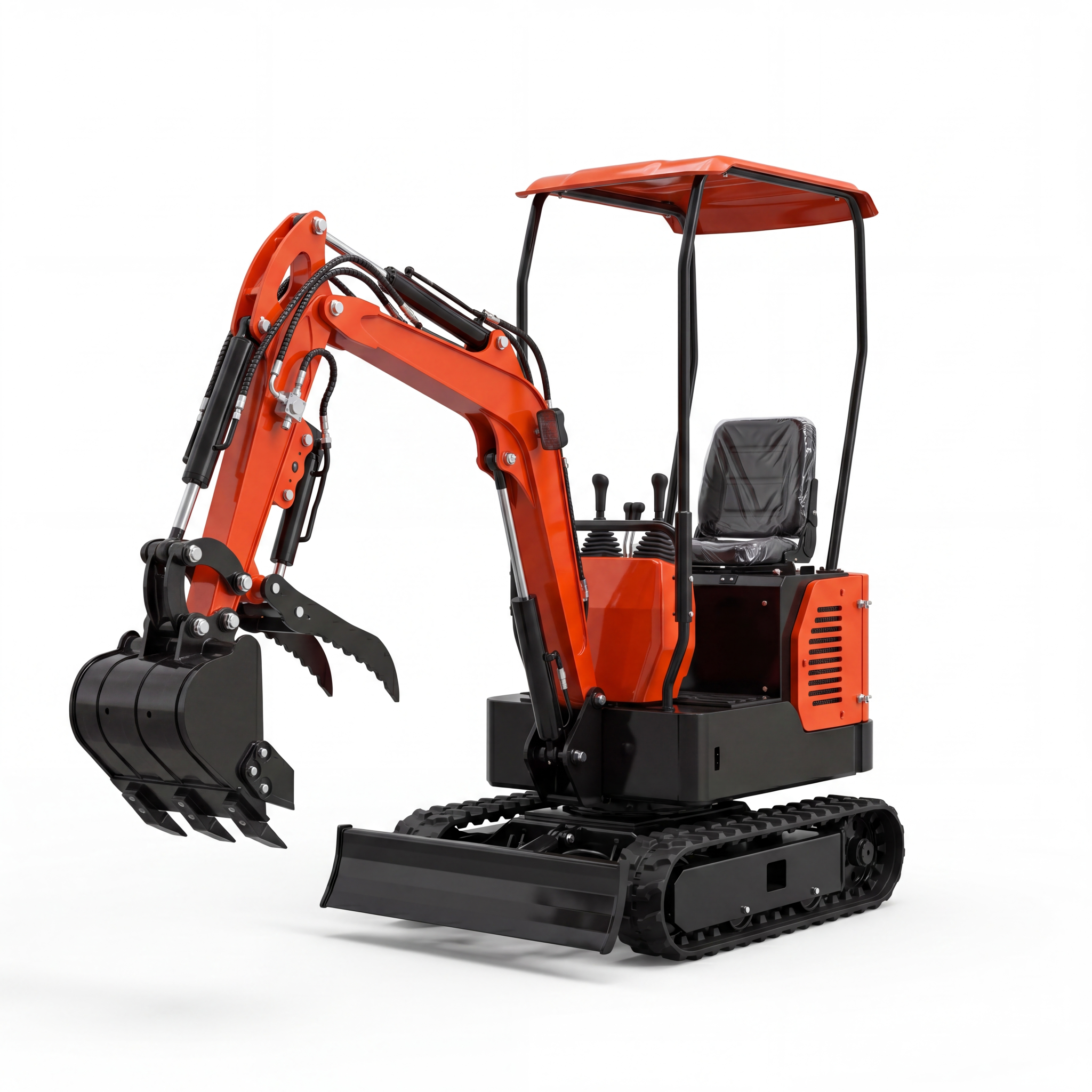

This guide explains how to measure mini digger track width, how it relates to overall width and transport width, and how to turn those numbers into a practical site-access check. It uses the current SDLE10 mini excavator product page as a verified example because its published specifications separate track width from overall machine width.
What “track width” means on a mini digger
On many compact excavators, track width refers to the width of one track shoe, not the distance from the outside edge of the left track to the outside edge of the right track. The full span across the undercarriage is usually called overall width. A machine may therefore have a 180 mm track shoe and a 920 mm overall width, which are two different measurements.
This matters when you compare listings. A specification sheet may list track width because it helps buyers understand ground contact and flotation. It may list overall width because that is the dimension that must pass through a gate. If you use one number as a substitute for the other, you can underestimate the space required.
Track shoe, undercarriage, body, and blade
The relevant dimensions are usually:
- Track shoe width: the width of one rubber or steel track belt.
- Overall width: the widest standard part of the machine, often measured across the tracks or dozer blade.
- Body width: the width of the upper structure, which may be narrower than the undercarriage.
- Transport width: the width when the machine is loaded or configured for road transport.
- Working width: the space occupied when the boom or blade is swung outside the basic envelope.
For example, the current SDLE10 page lists a 180 mm track width, 920 mm overall width, and 700 mm body width. The body may fit through a narrow opening, but the tracks and blade still define the practical clearance. That is why a tape measure at the narrowest point is more useful than a visual estimate.
How to measure a track correctly
Park the machine on level ground, lower the blade and bucket, and stop the engine before measuring. Measure the outside face of one track belt across to the opposite outside face for overall track span. Then measure the tread surface of a single track from edge to edge to confirm track shoe width.
Check the widest point at both the front and rear of the undercarriage. Rubber tracks can sit differently after loading, and a dozer blade may extend beyond the tracks. If the machine has an adjustable undercarriage, record the retracted and extended dimensions separately. Do not assume that a compact machine can be narrowed if the product page does not show that feature.
Use a site-access checklist
- Measure the narrowest gate, doorway, or alley opening.
- Measure the same opening again at ground level, not only at hand height.
- Account for posts, hinges, drainage channels, steps, and protruding walls.
- Add a working margin for operator steering and track deflection.
- Check the turn into the opening, not only the straight-line width.
- Confirm the surface can support the machine and any trailer.
A width equal to the machine dimension is not sufficient: the operator needs room to steer, and the track may shift as it climbs a lip. Agree a practical safety margin before dispatch.
Why track width affects stability and ground pressure
Tracks spread machine weight over a larger contact area than wheels. A wider track shoe can improve flotation in soft soil, but it may increase the overall width and reduce access. A narrower track can pass through a tighter opening, yet it may create higher ground pressure and less lateral stability on slopes or uneven ground.
The correct compromise depends on the work. Landscaping and utility trenching often prioritize access and low ground disturbance. Demolition, lifting, and work on slopes may require a more stable machine with a wider undercarriage. The track measurement should be considered together with operating weight, track length, track gauge, bucket size, and the position of the boom.
Track width is not lifting capacity
Matching track width to common job sites
| Site condition | What to check | Practical priority |
|---|---|---|
| Residential side gate | Gate opening, path width, turn radius | Access before productivity |
| Landscaped courtyard | Soft turf, track pressure, turning space | Low ground disturbance |
| Utility trench | Trench offset, spoil placement, stability | Reach and controlled digging |
| Sloped property | Grade, track gauge, blade use | Stability and operator training |
| Trailer transport | Trailer deck width, tie-down points, ramp angle | Safe loading envelope |
If the project is mainly narrow access, compare track width with overall width and body width. If the project requires lifting or grading, compare track gauge and machine class first. A related guide to mini digger track, blade, and overall dimensions explains how those measurements work together.
Transport and loading considerations
Track width also matters when loading a machine onto a trailer. The tracks must sit securely on the ramps and deck, and the tie-down points must be accessible.
Before transport, confirm the machine’s current configuration. A dozer blade, quick coupler, or attachment can change the footprint. Remove loose material from the tracks, lower the bucket, and follow the manufacturer’s or supplier’s loading instructions. Never rely on a previous job’s measurements if the machine or attachment has changed.
Buying advice for tight-access projects
Start with the narrowest permanent opening on the site. Then add the turning, steering, and safety margin that the operation requires. Compare that figure with the overall width, not just the track shoe. If the machine is close to the limit, consider a smaller class, a different attachment, or a planned lifting point rather than forcing access.
For a machine such as the SDLE10, the published figures show how useful it is to keep the dimensions separate: 180 mm track width, 920 mm overall width, 700 mm body width, 0.67 t operating weight, and 1700 mm maximum digging depth. Those details were checked on the current Shopify product page on September 17, 2026. Buyers should always confirm the latest page or quotation because configurations can change.
Track width is a design input, not a marketing number. Used with gate measurements, ground conditions, and transport plans, it helps you select a mini digger that can actually reach the work and remain stable while it is there. For a broader comparison, read mini digger width and stability.
Conclusion
Measure the track shoe, overall width, body width, and transport envelope separately. Check the narrowest point and the turning path. Match those numbers to the machine class and the job, and confirm every specification on the current product page before ordering.
