KAYO TD125 123.6cc 4-Stroke Semi-Automatic 4-Speed Pit Bike with Kick and Electric Start for Youth & Adult Off-Road Riding

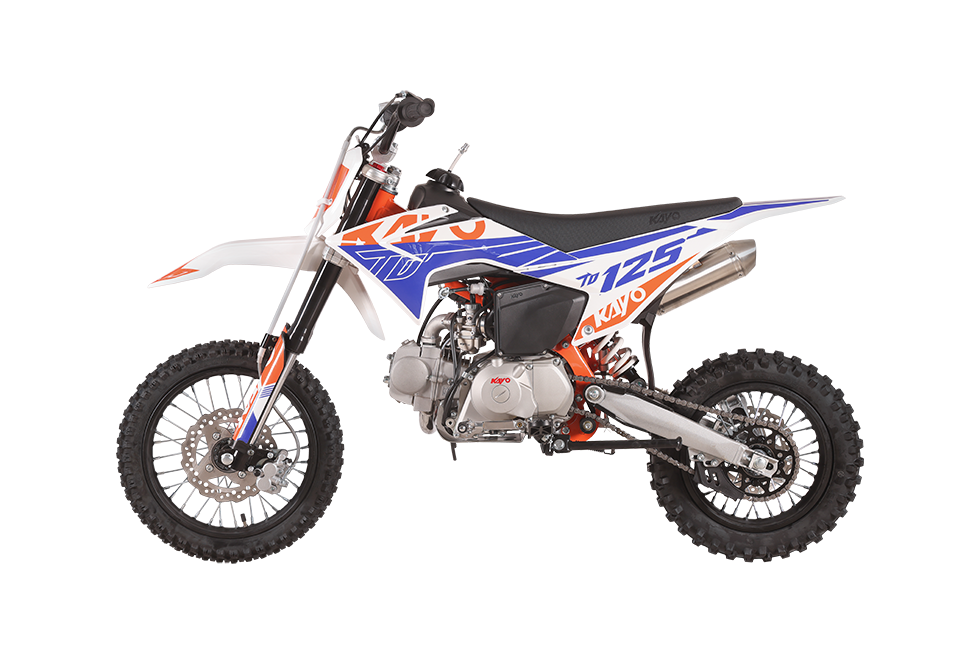

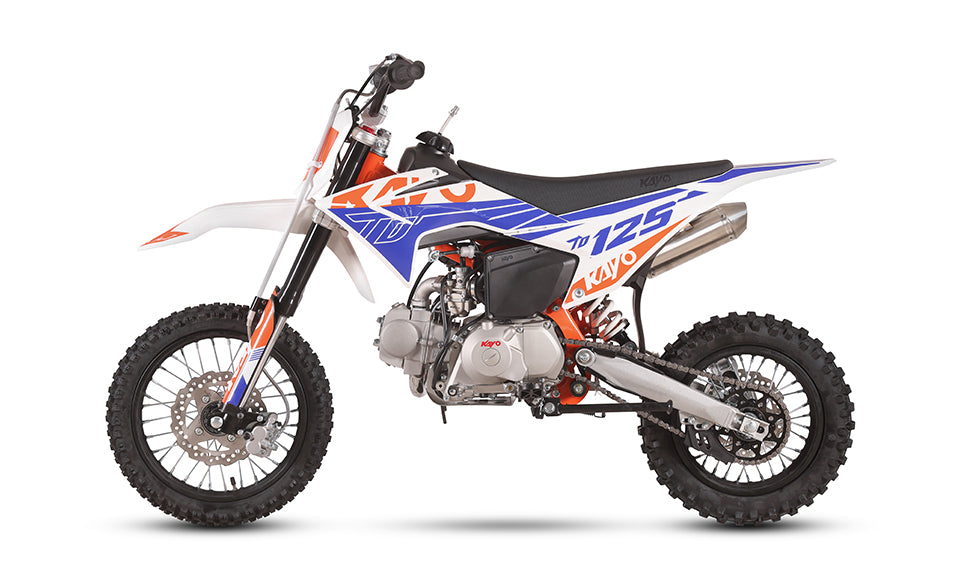

KAYO TD125 Pit Bike

To be a great rider, you must first be a good one. Take the next step with a pit bike designed to appreciate the fundamentals of off-roading. The KAYO TD125 captures the pure essence of pit bike riding: lightweight agility, spirited 123.6cc four-stroke punch, and confidence-building ergonomics. As the saying goes, "It's always more fun to ride a small bike fast than a big bike slow."

Power & Performance

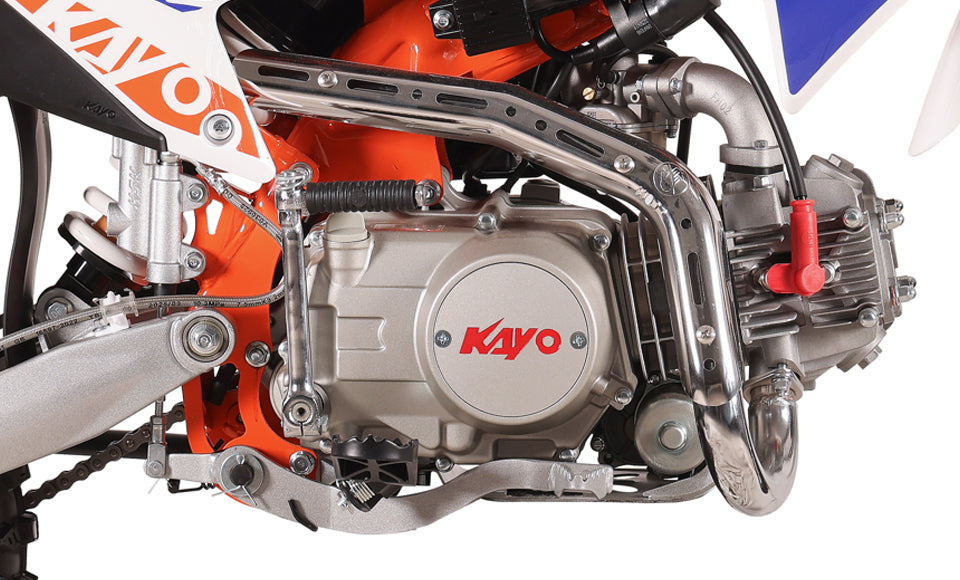

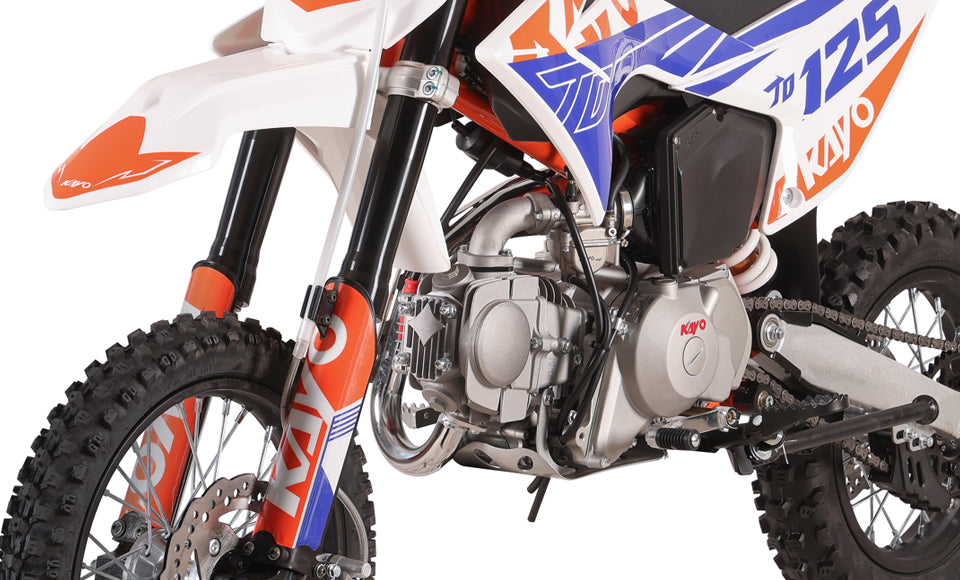

• 123.6cc 4-Stroke Engine: SOHC air-cooled single-cylinder engine producing an impressive 7.2 kW (9.7 hp) @ 7,500 rpm and 10 N·m of torque @ 5,500 rpm for robust hill-climbing power and trail acceleration.
• Semi-Automatic 4-Speed Transmission (N-1-2-3-4): Foot-operated shifting without clutch levers provides precise gear control and engine braking without stall anxieties.
• Dual Starting System: Push-button electric start paired with a traditional kick starter ensures dependable firing in any trail condition.
• Waterproof Air Filter: High-flow waterproof air filter lets you power through mud, rain, and shallow streams without hesitation.

Suspension, Brakes & Handling

• Inverted Front Shocks: Heavy-duty 27.6 in (700 mm) upside-down front forks increase front-end rigidity and tracking accuracy across rough trails.
• Rugged Rear Monoshock: 12.2 in (310 mm) rear suspension delivers smooth damping over roots, bumps, and ruts.
• Dual Hydraulic Disc Brakes: Front and rear wave-rotor hydraulic disc brakes deliver instant, predictable stopping power.

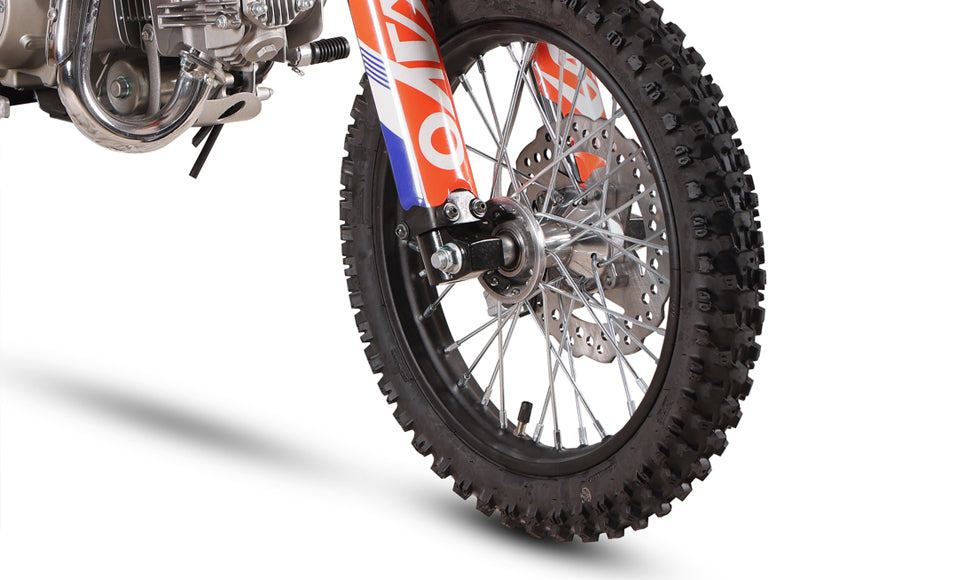

• Staggered 14"/12" Wheelset: 14 in front and 12 in rear high-traction knobby tires bite into loose dirt, sand, and mud.

Dimensions & Chassis

• Accessible Trail Ergonomics: Balanced 29.5 in (750 mm) seat height and 45.3 in (1150 mm) wheelbase offer great rider control and stability.
• High Ground Clearance: Generous 9.6 in (245 mm) ground clearance helps clear rocks and trail obstacles.
• Extended Riding Range: 1.59 US gal (6.0 L) fuel tank keeps trail sessions going longer between refills.
• Lightweight Chassis: 158.7 lb (72.0 kg) dry weight keeps the bike nimble and easy to manage.

Technical Specifications

• Engine Type: 4-Stroke, SOHC, Air Cooled
• Displacement: 123.6 cc
• Bore × Stroke: 2.13 × 2.13 in (54.0 × 54.0 mm)
• Compression Ratio: 9.0:1
• Fuel System: Carburetor
• Max Power: 7.2 kW @ 7,500 rpm
• Max Torque: 10 N·m @ 5,500 rpm
• Ignition: CDI
• Starting Method: Kick Start & Electric Start
• Transmission: Semi-Automatic 4-Speed (N-1-2-3-4)
• Final Drive: Chain
• Front Suspension: 27.6 in (700 mm) Inverted Fork, non-adjustable
• Rear Suspension: 12.2 in (310 mm), non-adjustable
• Tires: Front 14 in / Rear 12 in (F/14" R/12")
• Brakes: Front & Rear Hydraulic Disc Brakes
• Dimensions (L × W × H): 64.2 × 30.3 × 39.4 in (1630 × 770 × 1000 mm)
• Seat Height: 29.5 in (750 mm)
• Ground Clearance: 9.6 in (245 mm)
• Wheelbase: 45.3 in (1150 mm)
• Dry Weight: Approximately 158.7 lb (72.0 kg)
• Fuel Tank Capacity: 1.59 US gal (6.0 L)

Contact us for wholesale pricing, container shipping, and dealer inquiries.
