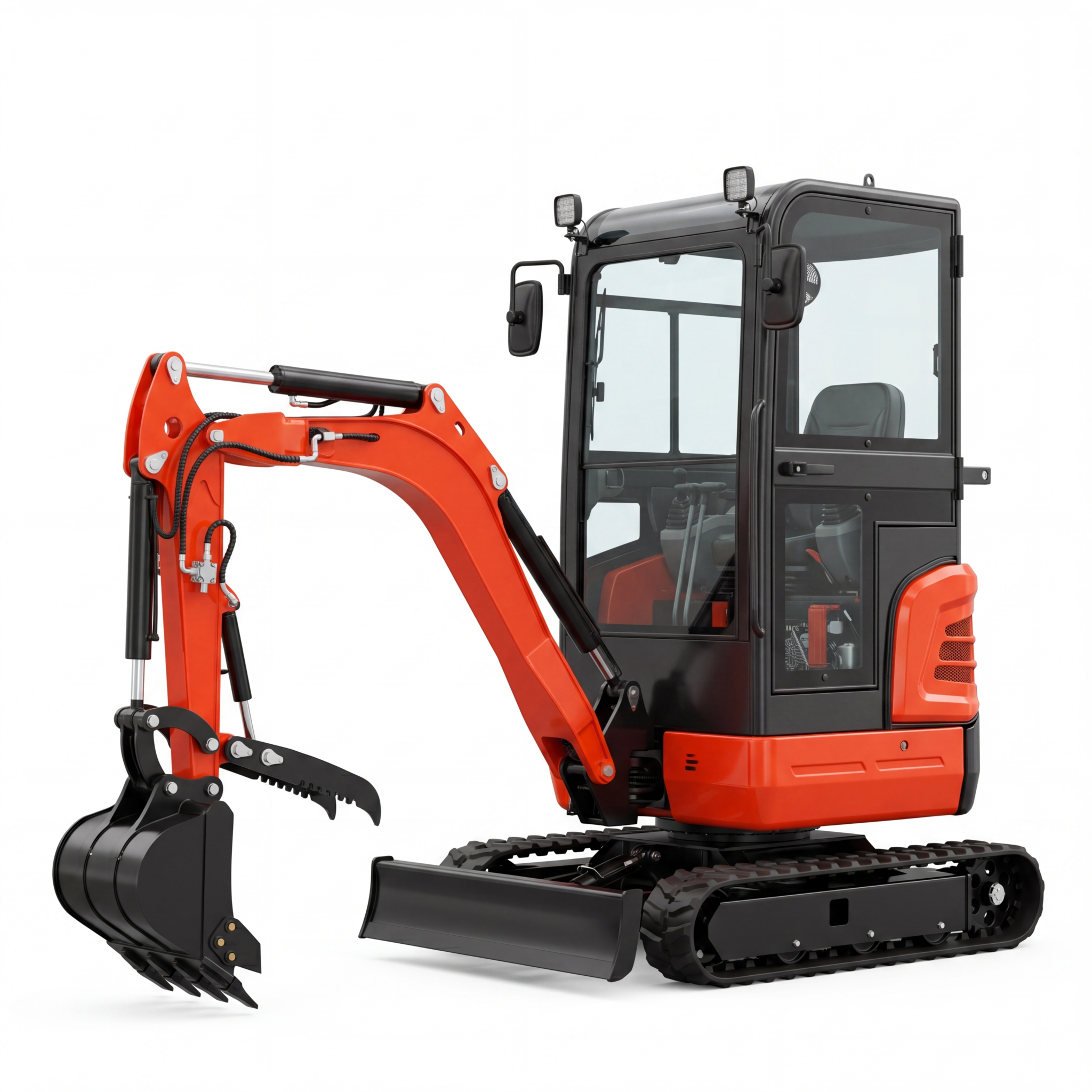

Mini Excavator Quick Coupler: Types, Sizes and How the Mechanism Works
A quick coupler turns a ten-minute bucket change into a thirty-second one, which on a machine that swaps between digging, grading and grabbing several times a day is the difference between using the right tool and making do. The mechanism is simple in principle but comes in several distinct forms, and the differences matter for compatibility, safety and what you can legally lift.
This guide covers how the mechanism works, the main types you will encounter on compact machines, and the dimensions that decide whether a coupler will fit your machine and your attachments.
What a Quick Coupler Actually Does
A coupler replaces the direct pin connection between the arm and the attachment with a frame that grabs the attachment's pins mechanically and locks them in place. The attachment's own pin dimensions stay the same; what changes is that the machine side now has a grab mechanism instead of fixed ears.
The Two Grabbing Points
Most couplers engage two of the attachment's pins: one is captured in a fixed hook at the front, the other is held by a moving jaw or wedge at the rear. When the jaw closes, the attachment is trapped between the two and cannot come out. Some designs add a third contact for added security, but the two-point principle is nearly universal.
Manual, Semi-Automatic and Fully Automatic
The distinction is about how the locking jaw is powered and how it stays locked.
| Type | How it locks | How it releases | Typical use | Trade-off |
|---|---|---|---|---|
| Manual (pin-pull) | Operator inserts a retaining pin by hand | Operator pulls the pin | Lowest cost, occasional changes | Operator must leave the cab |
| Semi-automatic | Spring or hydraulic wedge locks automatically | Operator releases with a tool from outside the cab | Most common on compact machines | Release still requires stepping out |
| Hydraulic | Hydraulic cylinder drives the wedge | Operator actuates from the cab | Frequent changes, production work | Needs an auxiliary circuit and plumbing |
| Fully automatic | Hydraulic lock with dual safety and in-cab indication | In-cab, with visual or electronic confirmation | Regulated lifting duties, larger fleets | Highest cost, more components to maintain |
Sizing: The Dimensions That Decide Fitment
Coupler fitment is decided by geometry, not by machine brand. Five dimensions do almost all the work, and measuring them before ordering avoids the most common purchase mistake.
- Pin diameter. The attachment pins the coupler has to grab. Typical compact-machine sizes fall into a handful of bands, and a coupler is built for one band.
- Pin centre distance. The spacing between the two pins, measured centre to centre. This is usually the dimension that differs most between machine classes.
- Ear width. The width of the attachment's mounting ears, which must fit inside the coupler's jaws.
- Arm width and pin boss. The machine side: the coupler has to bolt or pin onto the arm's existing mount.
- Auxiliary circuit availability. A hydraulic coupler needs a service line. If the machine has no spare circuit, a manual or semi-automatic coupler is the practical option.
Why "Fits 1–3 Ton Machines" Is Not Enough
Class-based marketing is a starting point, not a guarantee. Two machines in the same weight class from different manufacturers can have different pin diameters and different pin centres. Always match the coupler to measured dimensions on your machine and your attachments, and remember that your attachments must match the coupler too — a coupler that fits the machine but not your existing buckets solves nothing.
Standardisation: How Universal Is It Really?
The compact end of the market is not fully standardised, but it is not chaotic either. Within a given size band, dimensions cluster enough that many couplers and attachments interchange across brands, particularly in the smaller classes. Problems appear at the boundaries: a machine at the top of one band and an attachment at the bottom of the next will not always mate, even though both are nominally "compatible" with the same coupler.
There are also proprietary designs, where a manufacturer uses a non-standard geometry and expects customers to buy its attachments. These work well within their own ecosystem and poorly outside it. The practical test is whether you can buy a generic bucket that fits — if you can, you are in a standardised band.
Safety: The Part That Cannot Be Skipped
A coupler is a load-bearing component that is repeatedly locked and unlocked, which makes it a wear item with consequences. Two failure modes dominate.
Drop Through Uncommanded Release
If the locking mechanism is not fully engaged, or if it is knocked into the released position, the attachment can come off. Modern couplers address this with a secondary lock — a separate mechanical catch that holds the jaw closed even if the primary actuator fails. On any machine used for lifting, a secondary lock is not optional.
Drop Through Wear
The hook and jaw surfaces wear where they contact the attachment pins. As wear increases, the effective capture reduces. Periodic measurement of the grab geometry is the only way to know where you are, and it belongs in the routine inspection rather than being discovered during an incident investigation.
Effect on Machine Performance
A coupler is not invisible to the machine. It adds weight at the end of the arm and it moves the attachment slightly further from the arm's pivot. Both have real consequences:
- Reduced breakout force at the bucket. The extra offset lengthens the lever arm slightly.
- Reduced safe lift capacity at radius. The added mass at the front counts against the lift chart.
- Slightly increased reach and dig depth. The offset adds a small amount of both, which is occasionally useful.
- Reduced tip clearance. The coupler body sits between the arm and the attachment, which can change how the bucket curls.
On compact machines these effects are modest, but if the machine is used at the edge of its lift chart — lifting pipe, placing precast, handling material over a structure — they need to be accounted for rather than ignored.
Choosing the Right Coupler
| Your situation | Recommended type | Reason |
|---|---|---|
| One or two attachments, changed rarely | Manual or semi-automatic | Lowest cost, fewest components, no hydraulic circuit needed |
| Three or more attachments, changed daily | Hydraulic | Change time drops dramatically; pays back in weeks |
| Lifting duties with people nearby | Fully automatic with secondary lock | Independent lock and confirmation meet the higher duty of care |
| Machine with no spare hydraulic circuit | Semi-automatic | Avoids a costly retrofit |
| Mixed attachment fleet from several brands | Standardised-band coupler, verified by measurement | Keeps future attachment purchases open |
Where to Start
Measure your machine and your existing attachments first, then choose. If you are running a compact machine and swapping between a digging bucket, a grading bucket and a grab, a coupler is one of the highest-value additions available — it makes the attachment collection usable rather than theoretical.
A semi-automatic hydraulic quick coupler suits most compact setups without requiring an additional circuit. Pair it with attachments such as a grading bucket, and browse the mini excavator collection to check which class your machine sits in.
