How to Tell a Trackhoe From a Backhoe and Other Diggers on Site

On a busy site, or in a hire yard, you rarely get to read the specification plate. You look at the machine and decide what it is. That judgement is usually easy, but there are a handful of pairs that genuinely trip people up — trackhoe versus backhoe loader, excavator versus backhoe, mini digger versus skid steer with a digging attachment — and getting them wrong means the wrong machine turns up for the job.

Here is a practical field method for telling these machines apart in a few seconds, using features you can see from twenty metres away.

The four features to look at

Almost every identification question is settled by four observations, in this order.

The single fastest test is the front of the machine. A dedicated excavator has nothing at the front — the boom, the cab and the counterweight all live on the upper structure, and there is no loading bucket. A backhoe loader always has a large loading bucket on the front, because it is a tractor first and a digger second.

Telling a trackhoe from an excavator

You cannot, because there is no difference. A trackhoe is a tracked hydraulic excavator; the words describe the same machine. If someone insists they are different, ask them to describe the difference — it will usually turn out to be a difference in size, in configuration or in regional vocabulary, not in machine type.

What does differ, and what is worth identifying correctly, is the configuration: conventional tail swing, short radius or zero tail swing. Look at the rear of the upper structure relative to the tracks. If the counterweight clearly overhangs the track width, it is conventional. If the rear sits roughly within the track width, it is zero tail swing. This matters on site far more than the name does.

Telling a trackhoe from a wheeled excavator

Look at the undercarriage. Tyres rather than tracks means a wheeled excavator, which has the same rotating upper structure and the same digging arm but travels on roads. Wheeled machines usually carry outriggers or a dozer blade at the front or rear to stabilise them while digging, and they are noticeably taller than a tracked machine of the same capacity because they sit on wheels.

Compact machines: where it gets genuinely confusing

In the compact range, several distinct machines look superficially similar. The pairs worth learning are:

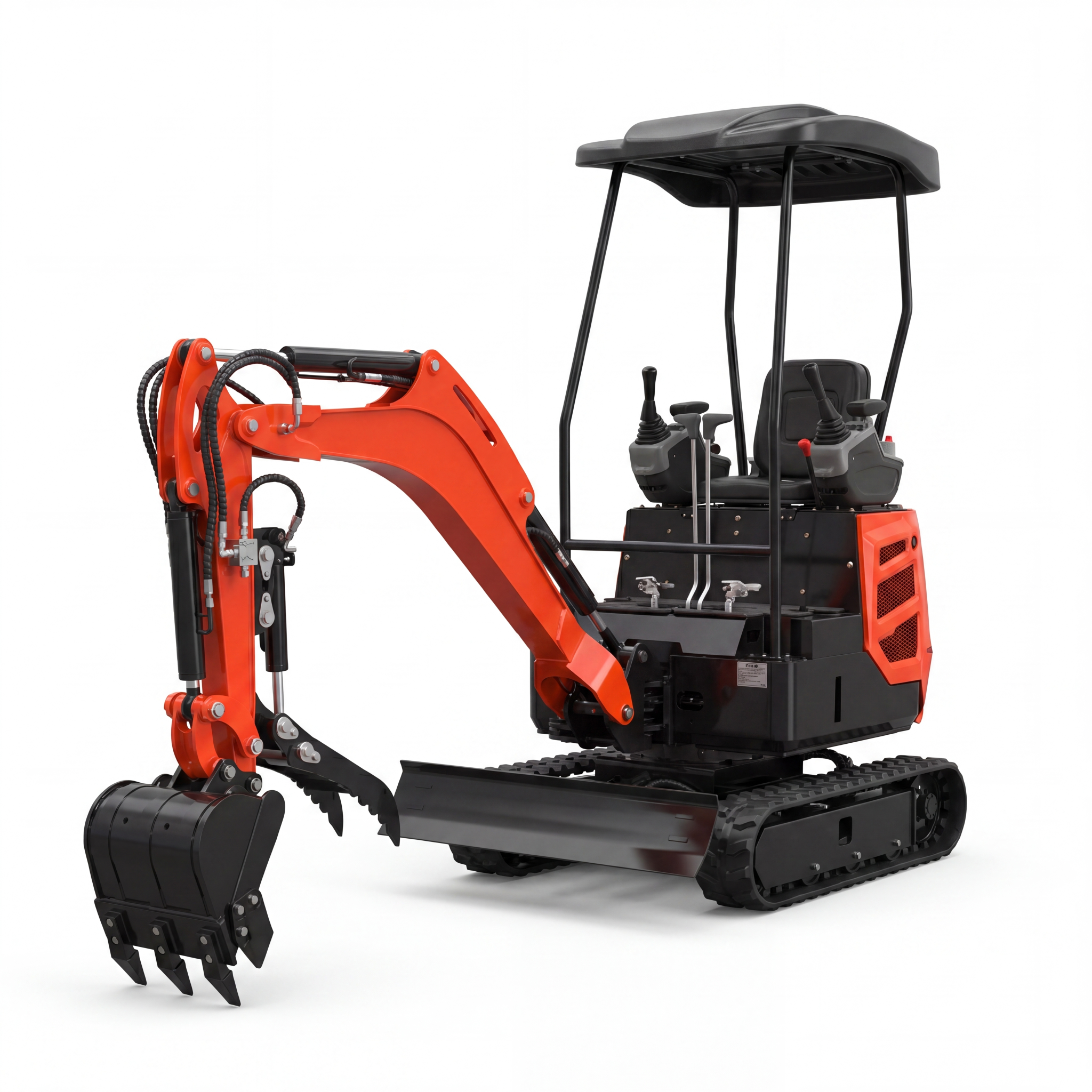

• Mini excavator versus micro excavator. Not different types, just different size bands — roughly below and above 1 tonne. The tell is whether the operator sits inside a structure or stands on a platform at the rear.
• Mini excavator versus skid steer with a digger attachment. The excavator has a dedicated boom on a rotating platform; the skid steer has a loader frame with an attachment bolted on and no rotation.
• Zero-tail-swing mini excavator versus conventional. Look at the rear overhang relative to the tracks, as above.
• Compact excavator with a dozer blade versus a small dozer. The blade is an accessory for backfilling and stability; the machine still digs with a boom.

Identification checklist on site

1. Look at the front: loading bucket present means backhoe loader or loader, not a trackhoe.
2. Look at the undercarriage: tracks or tyres, and how wide.
3. Look at the rear of the upper structure relative to the tracks to read the tail swing.
4. Look for a slew ring — the circular joint between upper and lower structure — which confirms full rotation.
5. Count the boom sections: a standard mono boom, a two-piece articulated boom, or a triple-articulated knuckle boom typical of zero-tail-swing compact machines.
6. Check for auxiliary hydraulic lines running down the dipper, which tell you the machine is set up for attachments.

Why getting it right matters commercially

Misidentification costs money in three ways. Hiring the wrong machine wastes a day and a delivery charge. Buying the wrong class wastes considerably more. And quoting on the assumption that a backhoe loader will do what a trackhoe does — or vice versa — produces a job that runs over because the machine was never capable of the cycle time assumed.

The safest habit when specifying or ordering: do not rely on the common name at all. State the configuration in formal terms — tracked, 360-degree rotation, operating weight, dig depth, tail swing — and both parties will be describing the same object regardless of what they call it.

Reading the machine plate

When identification from a distance is not conclusive, the machine plate settles it. Most machines carry a plate on the upper structure or inside the cab showing the manufacturer, model, serial number and often the operating weight. The serial number is the single most useful piece of information on any machine, because it resolves build variations, confirms the year, and lets a parts department identify exactly what was fitted at the factory.

Take a photograph of the plate before leaving a yard or viewing a used machine. Model names are frequently reused across generations and markets, and two machines with the same model name can have different mounting dimensions, different hydraulic specifications and different emissions compliance. The serial number removes that ambiguity, and it is the first thing to ask for when buying privately.

Where to go next

See the compact tracked machines in the mini excavator collection. Two examples worth comparing for configuration differences are the SDLE12 mini excavator and the SDLE25 mini excavator.
