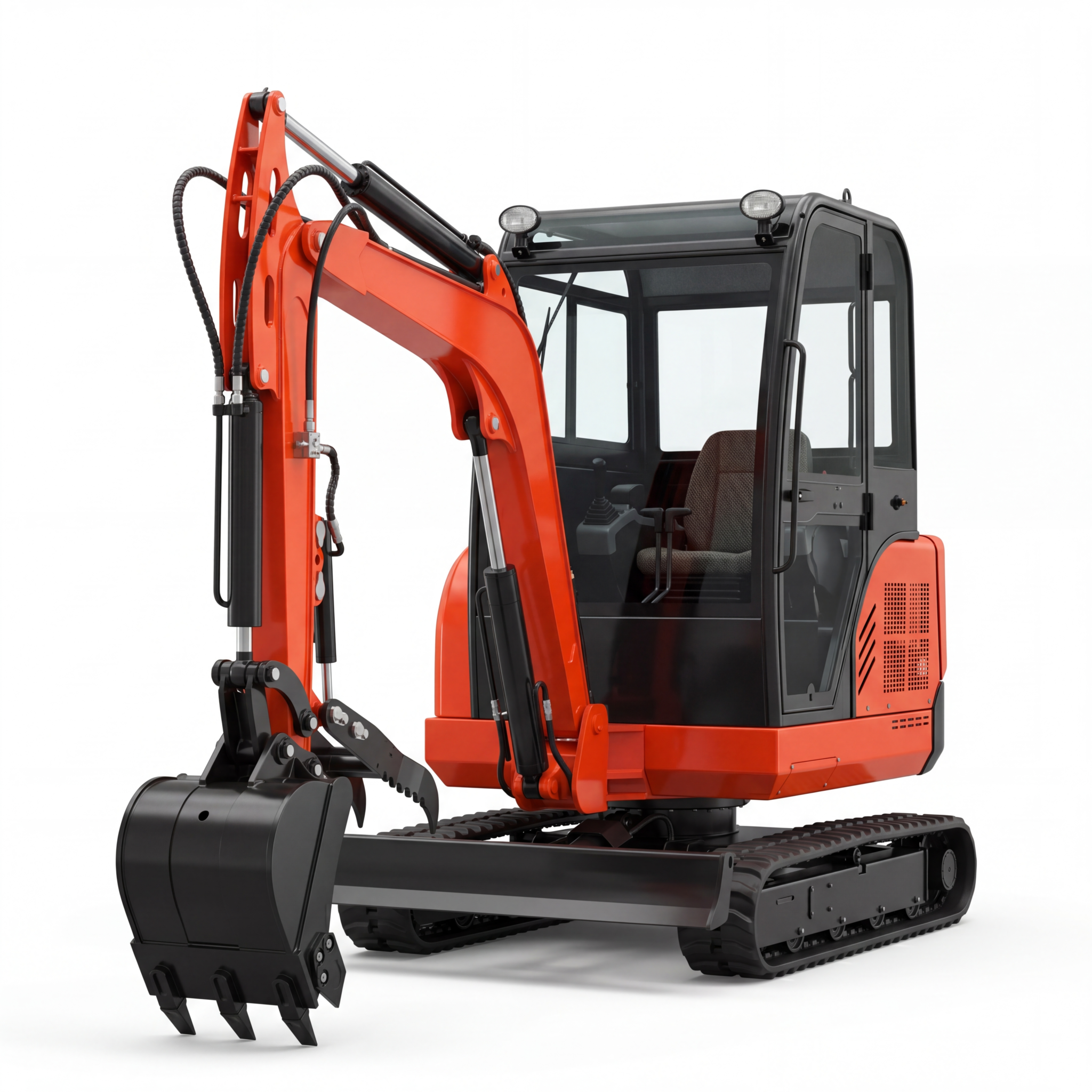

How to Inspect a Mini Excavator on Sight: A 12-Point Visual Checklist
A mini excavator will tell you a great deal about itself before you ever turn the key. Buyers who rely only on photographs and specification sheets miss the things that actually cost money later: a cracked boom weld, a badly worn set of tracks, a hydraulic cylinder weeping past its seal. This guide turns a visual once-over into a repeatable twelve-point checklist you can run in about fifteen minutes.
The method below is written for anyone evaluating a machine they do not yet own, whether that is a new unit arriving on a delivery truck, a used machine at a dealer, or a rental machine before you sign the handover paperwork.
Before You Start: Set the Machine Up Properly
A visual inspection is nearly worthless on a dirty machine parked on soft ground. Ask for three things before you begin. First, park the machine on level, firm ground with the boom lowered flat and the bucket resting on the ground. Second, have the machine washed, or at minimum have the undercarriage and the cylinder rods cleaned. Third, get enough light — inspect outdoors in daylight, never in a dim warehouse.
With the machine set up, work through the points below in order. Photograph anything questionable so you can compare later or send it to someone else for an opinion.
The 12-Point Visual Checklist
- Track condition. Look at the rubber track lugs across their full length. Uneven wear, missing chunks, or cracks running through the lugs mean replacement is close. Check that the track tension is even on both sides.
- Rollers, idlers and sprockets. Look underneath for seized rollers — they will show flat spots or shiny worn areas. A roller that no longer turns will destroy a track quickly.
- Blade and blade pivots. Check the blade edge for gouges and look at the pivot pins for movement. A bent blade usually means the machine has been pushed hard into material.
- Boom and arm structure. Inspect all welds, especially where the boom meets the house and where the arm meets the boom. Flaking paint, rust streaks running from a joint, or a visible crack line are all reasons to stop and ask questions.
- Cylinder rods. Extend and retract each cylinder and look at the exposed chrome rod. Pitting, scoring or a rusty band means the seal is letting contamination in and the cylinder will need rebuilding.
- Hydraulic hoses and fittings. Run your eye along every hose. Look for abrasion against the boom, bulging near a fitting, and any wet film of oil. A damp patch under a fitting is a leak, even if it does not drip.
- Pins and bushes. Look at each pivot point where a pin passes through two parts. Any visible gap between the pin and its bore, or movement when the joint is cycled, indicates wear that will translate into sloppy, imprecise digging.
- Bucket condition. Check the teeth or cutting edge, the side cutters, and the welds around the bucket ears. A heavily worn bucket is cheap to replace but tells you how many hours the machine has worked in abrasive ground.
- Counterweight and rear structure. Look for impact damage at the back. Repeated contact with walls is common on compact machines and can crack the counterweight mounting.
- Cab and controls. Check glass for cracks, door seals for splits, and the seat for torn upholstery. Confirm that all guards and the seat belt are present and undamaged.
- Engine compartment. Open the cover and look for oil film, coolant residue, and any wiring that has been spliced or taped. Check the coolant level and the oil level on the dipstick.
- Fluids and leak evidence underneath. Finally, look at the ground under the parked machine and at the belly pan. Fresh drips matter more than old staining, but both should be explained.
What Each Finding Usually Costs
Not every problem is a deal-breaker. Sorting findings by likely cost helps you decide whether to walk away, negotiate, or accept the issue.
| Finding | Typical severity | Negotiation approach |
|---|---|---|
| Worn rubber tracks | Moderate — routine wear item | Ask for a price reduction equal to a replacement set |
| Seized roller or idler | Moderate — leads to track damage | Require repair before purchase |
| Scored cylinder rod | High — rebuild or replace cylinder | Require repair, or deduct the full rebuild cost |
| Cracked boom weld | Severe — structural | Walk away unless professionally repaired and certified |
| Worn pins and bushes | Moderate — affects precision | Deduct re-bushing cost across affected joints |
| Minor oil seep at a fitting | Low — often a hose or seal | Ask for the fitting to be replaced before handover |
| Missing guards or seat belt | Low but safety-critical | Require replacement before the machine enters service |
Common Mistakes Buyers Make During a Walk-Around
- Inspecting only the clean side. Always walk completely around the machine and look underneath. Damage hides on the far side and below.
- Confusing fresh paint with good condition. A recently repainted boom may be hiding a repair. Look for overspray on pins, hoses and cylinder rods.
- Skipping the cold start. Insist that the machine has not been warmed up before you arrive. A cold engine reveals smoke, hard starting and slow hydraulics.
- Ignoring hose routing. Hoses rubbing against the boom are the single most common cause of a breakdown on a jobsite.
- Trusting hour meters without corroboration. Compare the hour reading against pedal, seat and track wear. A machine with low hours and heavily worn controls deserves scrutiny.
- Forgetting the auxiliaries. If the machine has an auxiliary hydraulic circuit, check that the quick couplers are present, capped and not damaged.
When a Visual Check Is Not Enough
A walk-around finds perhaps two-thirds of what matters. The rest requires the machine to be running. After the visual inspection, ask for a functional demonstration: cycle every function to its limits, listen for pump whine or relief valve squeal, check that the machine tracks straight, and confirm that the swing brake holds on a slope.
If the machine is second-hand and the money is significant, a hydraulic pressure test and an engine compression check are inexpensive relative to the purchase price and will confirm what the visual inspection only suggested.
Make the Checklist Part of Your Process
The value of a written checklist is consistency. Whether you are looking at one machine or ten, the same twelve points in the same order means nothing gets missed because a particular machine looked good at first glance. Keep the list on your phone and photograph every finding; a short record taken on the day is worth far more than a memory three weeks later when a problem appears.
