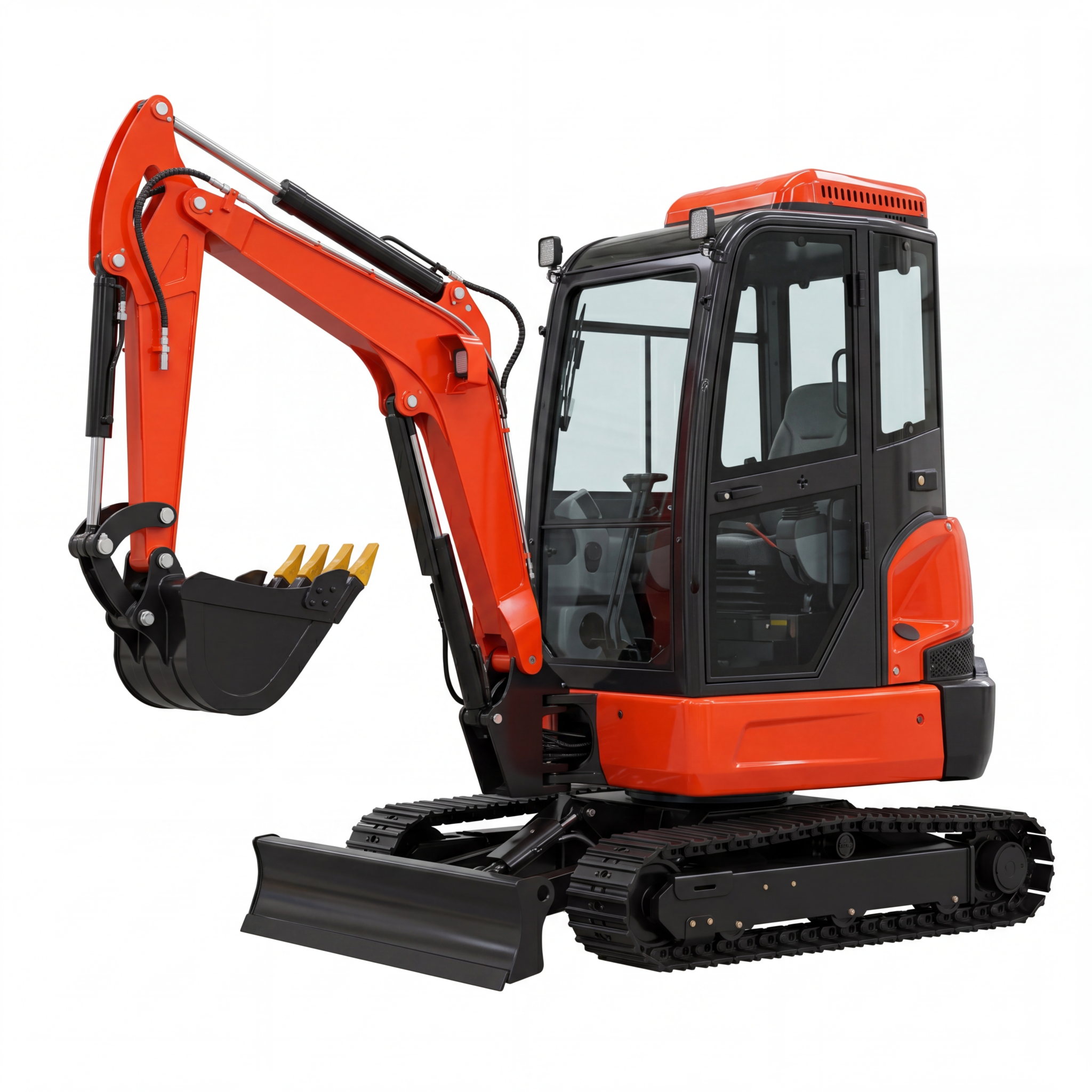

How Tall Is an Excavator? Height Ranges by Size Class
Height is the excavator dimension people forget to check, and it is the one that most often causes an expensive surprise. Width gets measured because gates are obvious. Depth gets checked because the job depends on it. Height gets assumed — until the machine meets a low doorway, a carport, a covered walkway, an overhead cable or a low bridge on the way to the site.
This article sets out typical height ranges by size class, explains which height figure manufacturers actually publish, and shows how to use the number before it costs you a delivery charge.
Which height figure is which
Specification sheets quote more than one height, and they are not interchangeable. Understanding the difference prevents most confusion.
| Figure | What it measures | When you need it |
|---|---|---|
| Transport height | Top of the machine with the boom lowered into travel position | Moving the machine, loading a trailer, checking bridge clearance |
| Overall height (cab or canopy top) | Highest fixed point of the upper structure | Indoor work, doorways, low structures |
| Maximum dump height | How high the bucket can discharge material | Loading trucks, backfilling over walls |
| Maximum digging height | How high the bucket teeth can reach | Working on faces, trimming banks |
When someone asks "how tall is an excavator," they usually want transport height, because that is the figure that decides whether the machine fits through something. Note that transport height depends on the boom being lowered — a machine driven under a low obstacle with the boom raised is a very different object.
Typical height ranges by class
The bands below are industry-typical figures for the compact and mid-size range, not specifications for any individual model. Machines with a canopy rather than an enclosed cab sit at the lower end, and machines fitted with a dozer blade are unaffected in height but change overall length.
| Class | Operating weight | Transport height | Maximum dig height | Maximum dump height |
|---|---|---|---|---|
| Micro | 0.8 – 1.2 t | 1.5 – 2.0 m | 2.5 – 3.0 m | 1.7 – 2.2 m |
| Compact mini | 1.5 – 2.0 t | 2.1 – 2.5 m | 3.0 – 3.8 m | 2.1 – 2.7 m |
| Large mini | 2.5 – 3.5 t | 2.4 – 2.7 m | 3.9 – 4.8 m | 2.7 – 3.4 m |
| Midi | 5 – 8 t | 2.7 – 3.0 m | 5.5 – 6.5 m | 3.8 – 4.6 m |
| Standard | 20 – 25 t | 3.0 – 3.5 m | 9.0 – 10.0 m | 6.3 – 7.0 m |
Why the compact classes matter more here
Height becomes a binding constraint precisely where machines are used indoors or in residential settings. A micro machine at around 1.5 to 2.0 m transport height will pass through many internal doorways and most garages. A compact mini at roughly 2.1 to 2.5 m will not pass through a standard domestic doorway but will clear most carports and industrial roller doors. A large mini above about 2.4 m starts to be excluded from a surprising number of agricultural and light industrial buildings.
This is why compact buyers should treat height as a primary selection filter alongside width. Machines are frequently chosen on width alone, only to discover that the canopy fouls a lintel on the way into a barn.
Canopy versus cab
The choice between an open canopy and an enclosed cab can change transport height by a meaningful margin, sometimes 100 mm or more. If height is tight, a canopy machine may fit where a cabbed machine does not, at the cost of weather protection and, in some applications, falling-object protection. Where a structure requires a protective cab, the height penalty is not negotiable and the machine class has to change instead.
Height versus width versus weight
These three dimensions constrain a machine in different places, and the useful habit is to check all three against the route, not just the working area.
- Width governs gates, doorways and narrow passages.
- Height governs lintels, canopies, tunnels, bridges and overhead services.
- Weight governs ground bearing, floors, trailer payload and bridge limits.
A machine that passes on all three is the machine that reaches the work. A machine that fails any one of them does not, regardless of capability.
Checklist before you commit
- Establish whether the published figure is transport height or overall height.
- Confirm whether the machine has a cab or a canopy, and get the figure for that exact configuration.
- Measure the lowest overhead obstruction on the route, including any cable, pipe or branch.
- Add a clearance margin — 100 mm is a sensible minimum, more on uneven ground.
- Remember that the boom must be lowered to achieve transport height, and check that the operator can do so on the route.
- If loading onto a trailer, add the trailer deck height to the machine transport height for the real combined figure.
Height and stability are related, but not the same thing
A taller machine is not automatically less stable, but height and stability are linked through the position of the centre of gravity. A machine with a high cab and a raised upper structure carries its mass higher, which matters when working across a slope or lifting at reach. This is why compact machines designed for slope work are built low and wide, and why adding a high cab or a roof-mounted accessory to an already tall machine is worth thinking about rather than assuming.
For most compact buyers the practical consequence is modest: stay within the manufacturer's stated limits for slope and lift, and be aware that a machine chosen for its low height will generally feel more planted than a taller machine of the same weight. Where height is genuinely tight and the ground is sloping, a low machine with a wide track gauge is the combination to look for.
