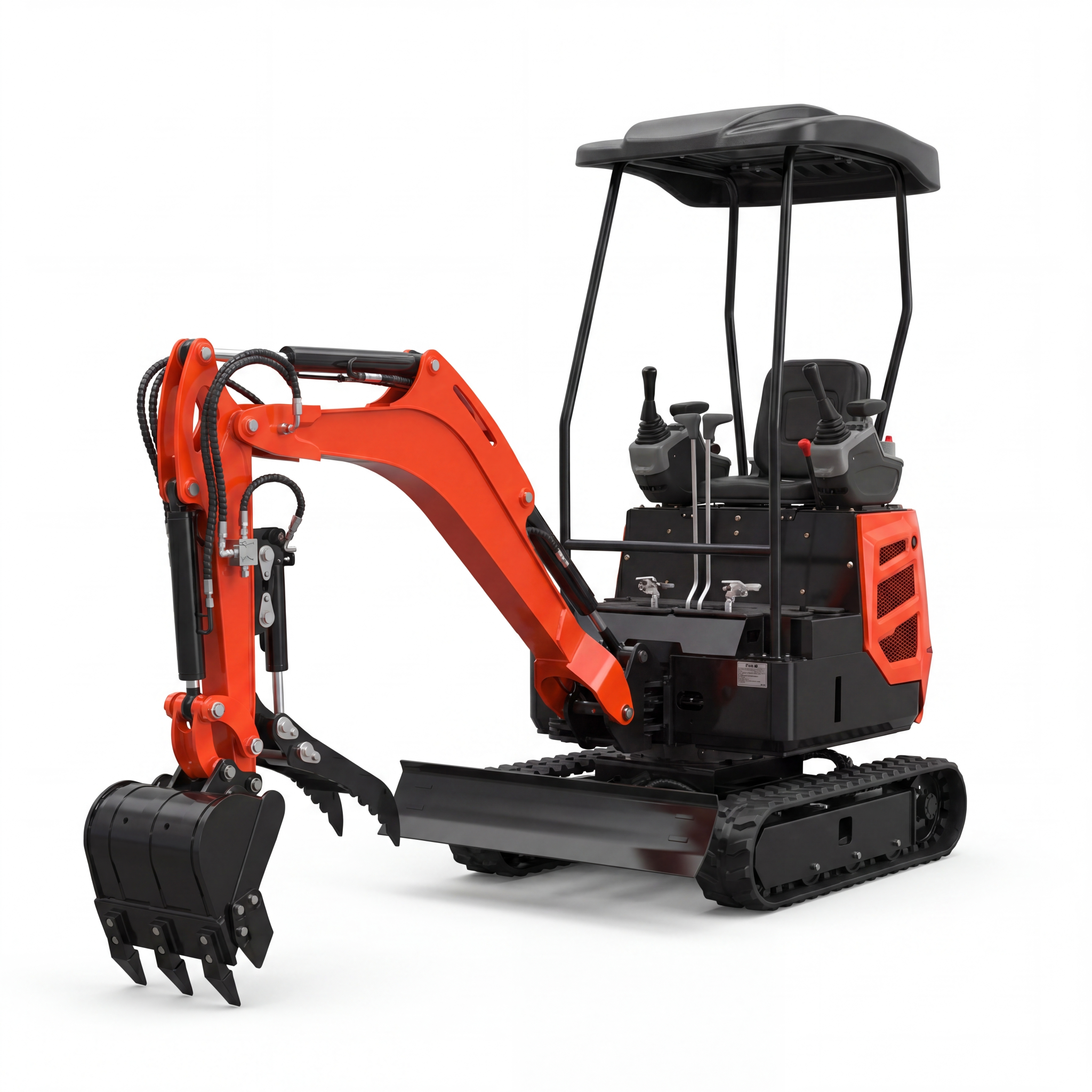

How to Install and Use a Hydraulic Thumb on a Mini Excavator

Fitting a hydraulic thumb to a compact excavator is a half-day job for a competent owner-operator with basic tools, and the mechanical side is the easy half. What separates a thumb that works well for years from one that frustrates daily is the setup: bracket position, hose routing, and the way the control is mapped. This is a full procedure from selection through to first-day checks.

What You Need Before Starting

Confirm three things before anything is unboxed. First, that the machine has a free auxiliary circuit — a thumb is useless without hydraulic supply. Second, that the thumb is sized to your machine class and your bucket width. Third, that the kit includes the bracket, cylinder, hoses and fittings; kits vary and a missing fitting turns a half-day job into a two-day one.

Tools and Consumables

• Socket and spanner set, plus torque wrench
• Hydraulic hose spanners (two, to avoid twisting fittings)
• Threadlocker and anti-seize
• Grease gun and grease
• Catch container for hydraulic oil, plus caps and plugs
• Thread sealant suitable for hydraulic fittings
• Rags and a parts tray — hydraulic cleanliness is not optional

Fitment Procedure

Step 1 — Prepare the Machine

Park on level ground, lower the bucket flat, shut down and cycle all controls to release residual pressure. Chock the tracks. Find the auxiliary circuit ports and confirm which line is pressure and which is return; getting them backwards is the most common plumbing error and produces a thumb that works in one direction with reduced force.

Step 2 — Position and Fit the Bracket

Offer the bracket up to the arm and check it sits square with full contact along the mounting face. Many compact-machine brackets bolt on; some designs require welding to the arm. If welding is required on a machine under warranty, check the terms first — and use a qualified welder, because the bracket is a structural load path.

Position matters more than it looks. The bracket should place the thumb pivot so the thumb can close fully onto the bucket without the cylinder running out of travel at either end. Check through the full arc before final tightening.

Step 3 — Mount the Cylinder

Fit the cylinder between the bracket and the thumb, greasing all pins. Torque the mounting bolts to specification. Cycle the thumb by hand through its full travel before connecting hydraulics — it should move smoothly with no binding. Any resistance at this stage is a geometry problem, and it will not improve once hydraulic force is applied.

Step 4 — Plumb the Hydraulics

Route hoses along the arm following the existing hose runs, keeping clear of pinch points and any surface that moves. Secure at regular intervals with clamps. The critical check is at full curl and full extension: cycle the arm slowly through its complete range with hoses loosely positioned, and watch for anything being pulled taut or rubbed.

Fit the hoses to the auxiliary circuit, using two spanners so the fittings do not rotate. Cap or plug anything left open immediately.

Step 5 — Bleed and Test

Start the machine and operate the thumb slowly through its full range several times with no load. Air in a new cylinder makes movement jerky; it usually clears within a few cycles. Check every fitting for leaks with the system under pressure, and check hose routing again now that the arm is moving under power.

Setting Up the Control

How the thumb is controlled determines whether it gets used. On most compact machines the auxiliary circuit is operated by a foot pedal or a thumb roller on a joystick.

Choose the Right Actuation

A foot pedal leaves both hands on the joysticks, which suits work where the operator is simultaneously positioning the boom and gripping. A joystick roller keeps the operator's foot free for travel, and suits work involving movement around the site. Many operators prefer the roller once they are used to it, but either works — the important thing is that it is reachable without changing hand position.

Consider Flow Adjustment

If the thumb closes too fast to control, reducing auxiliary flow makes precise placement much easier. Fast actuation is impressive in a demonstration and awkward when positioning a pipe. Set the flow so a full close takes a couple of seconds rather than a fraction of one.

Learning to Use It: Technique

Operating a thumb well is a skill, and there are a few habits that make the difference.

1. Approach with the thumb open wider than you think necessary. Closing onto material is easier than repositioning because you came in too tight.
2. Set the bucket angle first, then close the thumb. Cradling material against the bucket is more stable than pinching it.
3. Keep loads low and close. Capacity falls away quickly with radius, and a compact machine has limited margin.
4. Use the bucket curl and the thumb together when placing — the combination gives finer control than either alone.
5. Park the thumb flat against the arm for digging so it is out of the way and protected.
6. Roll material rather than dragging it. Dragging sideways loads the thumb and cylinder in directions they were not designed for.

First-Day and Routine Checks

Common Problems

• Thumb will not close fully onto the bucket. Bracket position or cylinder stroke. Re-check geometry before adding shims.
• Thumb moves in one direction only. Pressure and return reversed at the auxiliary ports.
• Jerky movement. Air in the cylinder — cycle slowly several times.
• Slow, weak closing. Insufficient flow or pressure at the auxiliary circuit; check the machine's specification.
• Hose fails after a few weeks. Almost always a routing problem that was not visible at rest, only at full curl.
• Thumb fouls the cab or boom when parked. Bracket too far forward; reposition or use a different parked position.

Safety Notes

A thumb holds material by friction and clamping force, not by positive retention. Material can slip, especially when wet, round or unbalanced. Keep people clear of the load path, carry loads low, and never treat a thumb-equipped machine as a lifting device with people underneath. The machine's lift chart still governs, and the thumb adds weight that reduces available capacity.

Getting Started

If your machine already has an auxiliary circuit, a hydraulic thumb is one of the cheapest ways to multiply what it can do — material handling, light demolition, land clearing and general site tidy-up all become one-operator jobs. Start with a kit sized to your bucket width and your machine class.
