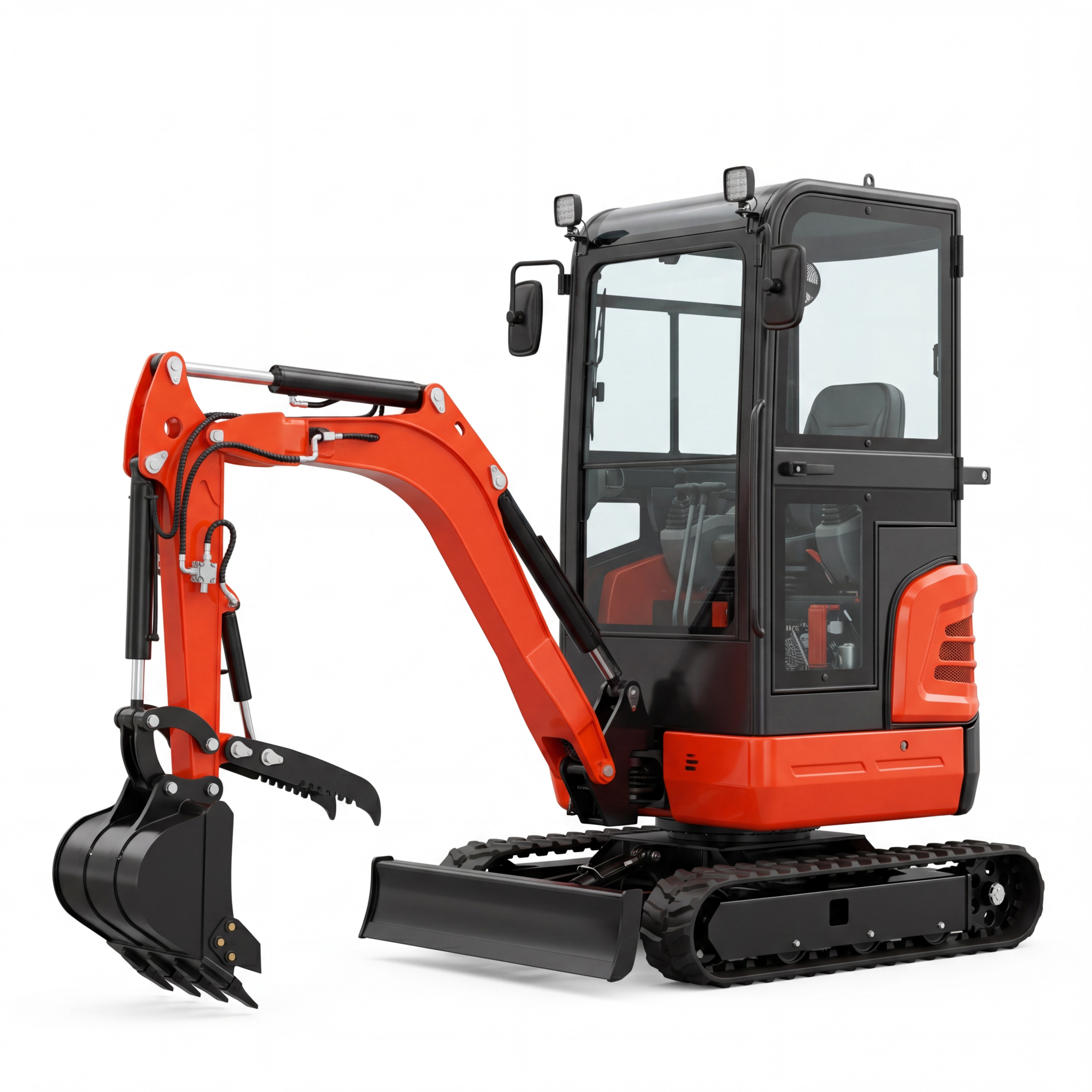

How to Fit Your First Bucket on a Bucketless Excavator
Fitting the first bucket on a bucketless excavator is a thirty minute job if you prepare properly, and a two day delay if you order the wrong bucket and have to wait for it to arrive. The work itself is simple: two pins, two retainers and a grease gun. Almost every failure in this job comes from measurement, not from the fitting.
This walkthrough covers the measuring step, the safe fitting procedure, the hydraulic connection where one is needed, and the checks that should be done before the machine goes to work.
Measure Before You Order
Take four measurements from the machine and write them down. Get them wrong and the bucket will not fit no matter how well it is built.
- Arm pin diameter, measured across the pin, not the bore of the boss.
- Linkage pin diameter, which is often different from the arm pin diameter.
- Pin centre distance, which is the centre to centre distance between the arm pin and the linkage pin.
- Inside width of the arm bosses, which sets the clearance for the bucket lugs.
If a quick coupler is already fitted, the measurement job changes: record the coupler make or profile and the pin sizes it uses, then order coupler compatible buckets instead of direct pin buckets. Photograph the linkage from both sides before you order anything, because photographs settle most disputes with suppliers far faster than descriptions.
Prepare the Machine and the Bucket
Park the machine on level, firm ground with the arm lowered and the engine stopped. Release the hydraulic pressure by cycling the controls with the engine off, then move the safety lever to the locked position. Lay the bucket flat on the ground in front of the machine, open side up, positioned so the linkage can reach it without the machine having to slew.
Check that the bucket you received matches your measurements. Compare the pin bosses against the sizes you recorded, and confirm the retainers supplied are the right type for the pins. Doing this on the ground takes two minutes and prevents a wasted fit.
The Fitting Sequence
- Remove the transit pins and any protective caps from the arm and the bucket linkage.
- Align the arm bosses with the bucket lugs by lowering the boom and retracting the arm slowly.
- Insert the arm pin first, driving it through both lugs and the boss until it is flush.
- Raise the arm slightly and align the linkage with the bucket's rear boss.
- Insert the linkage pin, then fit the retainers or bolts on both pins according to the manufacturer's method.
- Connect the auxiliary hydraulic hoses if the bucket or coupler is hydraulic, matching the hose runs so they are not twisted or stretched.
- Grease every pin until fresh grease appears at the joint.
- Start the engine and cycle the bucket slowly through full curl and full dump, watching for any contact between the cylinder and the linkage.
Connecting the Hydraulics
If the machine has a hydraulic quick coupler or a hydraulic tilt bucket, the hoses matter as much as the pins. Before connecting, wipe both halves of every coupling clean and check the thread or the flat face type matches; mixing them is a common and expensive mistake. Route the hoses so they follow the arm rather than hanging free, and leave enough slack at the boom foot for the full travel of the arm. Once connected, cycle the function slowly and watch for a hose being pulled tight at any point in the travel, because a stretched hose will fail at the crimp long before the bucket wears out.
| Problem | Likely cause | What to do |
|---|---|---|
| Pin will not enter the boss | Wrong pin diameter, or a lug out of alignment | Measure again, and use a drift to align rather than forcing the pin |
| Bucket will not curl fully | Linkage assembled to the wrong hole position | Refit the linkage to the correct position and re test |
| Coupler will not lock | Bucket profile does not match the coupler | Stop and confirm the coupler type instead of modifying the bucket |
| Hydraulic function slow | Auxiliary flow too low, or a hose partly blocked | Check the machine's flow rating against the attachment requirement |
| Pins work loose in the first day | Retainers not fitted or not greased | Re fit retainers and grease before the next shift |
Checks Before the Machine Goes to Work
With the bucket fitted and the hydraulics connected, work through a short acceptance routine. Cycle the bucket through ten full movements and listen for a change in the pump note, which usually indicates a relief valve working. Look underneath the machine for fresh hydraulic oil. Confirm the bucket teeth are fitted and the retaining clips or pins are seated, since a tooth thrown from a machine into a worksite is a real hazard. Finally, re check every retainer after the first hour and again at the end of the first day, because new pins settle.
Fitting Other Tools
Once the method is familiar, the same sequence applies to every attachment. A breaker, an auger or a grapple all follow the same two pin pattern, and any of them that is hydraulic only adds the hose step. The difference is that attachments other than a bucket are often heavier and awkwardly balanced, so use a second person or a sling for anything you cannot lift and position comfortably by hand.
