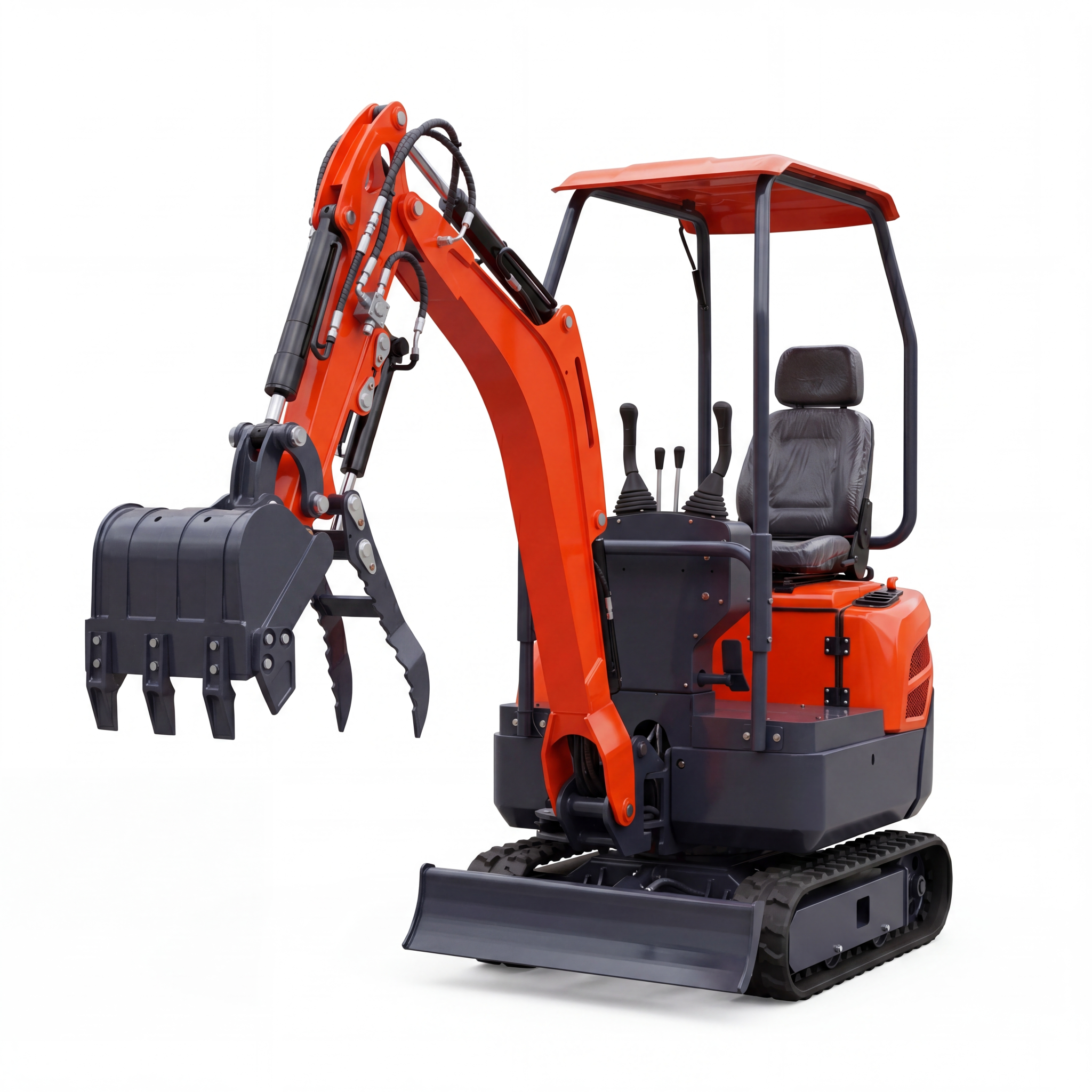

How to Check Bucket Fitment on a Mini Excavator Before You Buy

Fitment problems are cheap to prevent and expensive to fix. A bucket that arrives and does not fit costs you the return freight, the delay and often the restocking fee, and none of that is recoverable. The good news is that checking fitment properly takes about twenty minutes with a tape measure and a phone camera, and it catches essentially every common mismatch before you order.

This is the procedure, in order.

Step 1: Photograph the mounting point before you touch anything

With the bucket still fitted, take three photographs of the dipper nose: one square-on from the side showing both pins, one from directly above showing the ear spacing, and one from the front showing the width of the nose casting. Include a tape measure or a ruler in at least one frame so the images have scale. These photographs settle most disputes with a supplier far faster than a model number does.

Step 2: Measure the pins, not the holes

Measure the pin diameter itself with a caliper where possible, because pins wear and holes deform. Take pin diameter at two points along the pin; if they differ by more than a fraction of a millimetre, the pin is worn and you should measure the unworn section or the new-pin specification from the parts book. Then measure the distance between pin centres — from the centre of one pin to the centre of the other, not edge to edge. This is the dimension that most often causes a near miss.

Step 3: Measure the ear spacing

Record the width across the outside faces of the bucket ears and the inside dimension between them. The inside dimension must accommodate the dipper nose casting or the coupler jaw with only minimal clearance. Too much clearance produces side play, which shows up as imprecise grading and rapid pin wear; too little means the bucket simply will not seat.

Step 4: Establish whether you are pin-on or coupler

If your machine has a quick coupler, the bucket does not mount to the dipper at all — it mounts to the coupler, and the relevant dimensions are the coupler's own pin diameter, pin centres and jaw width. These are frequently different from the machine's direct pin-on dimensions, so a bucket advertised as fitting your model may not fit your coupler.

Step 5: Check the weight against the class

Weigh the bucket, or take the listed weight seriously. Compare it with the standard bucket supplied for your machine. A replacement that is materially heavier reduces safe lift capacity at reach and makes the machine feel nose-heavy on slopes. If the bucket is heavier because it is built for rock or demolition, that is a deliberate trade-off you should be making consciously, not discovering afterwards.

Step 6: Confirm width against the work and the ground

Width is a performance decision, not a fitment one, but it interacts with power. A wider bucket spreads the same breakout force over a longer cutting edge and will stall a small machine in firm ground. As a rough rule for the compact classes, choose the narrowest bucket that still gives acceptable output. Most owners end up with two: a narrower toothed bucket for breaking and trenching, and a wider flat or grading bucket for finishing and backfill.

Step 7: Verify the tooth system

If the bucket has replaceable teeth, establish the tooth system and whether it is a common pattern. Welded-on teeth are cheaper to buy and much more expensive to own, because refurbishing them means a welder and downtime. Bolt-on or pin-on systems in a common pattern cost more up front and pay back quickly if the machine sees abrasive ground.

Pre-order checklist

1. Photographs of the mounting point with scale, saved and ready to send.
2. Pin diameter measured at two points.
3. Pin centre distance measured centre to centre.
4. Ear inside and outside width recorded.
5. Configuration confirmed: pin-on, manual coupler or hydraulic coupler.
6. Bucket weight compared with the machine's standard bucket.
7. Width chosen for the ground, not for appearance.
8. Tooth system identified and confirmed as a replaceable pattern.
9. Auxiliary circuit confirmed if the bucket is hydraulic.
10. Supplier's return policy read before payment.

If it still does not fit

Do not force it and do not machine the ears. A bucket forced onto undersized pins or into a too-narrow jaw will wear rapidly and can fail in service. Contact the supplier with your photographs and measurements; most fitment disputes are resolved by discovering that the listing was for the coupler version or for a different point in the model range.

When to stop measuring and ask the dealer

Self-measurement works well for standard configurations and fails in three situations. The first is a machine with an aftermarket coupler of unknown make, where the pattern has to be identified rather than measured. The second is an older or imported machine where the model plate is missing or the model was sold under different names in different markets. The third is any machine where the dipper has been replaced at some point, since a non-original arm may not match the original mounting dimensions.

In all three cases the dealer's parts department is faster and more reliable than a tape measure. Supply the machine serial number rather than the model name — serial numbers resolve build variations that model names hide — and ask for the pin-on dimensions and, if applicable, the coupler pickup dimensions as recorded in the parts system. Dealers can usually also confirm which buckets were factory-available for that serial number, which gives you a known-good starting point.
