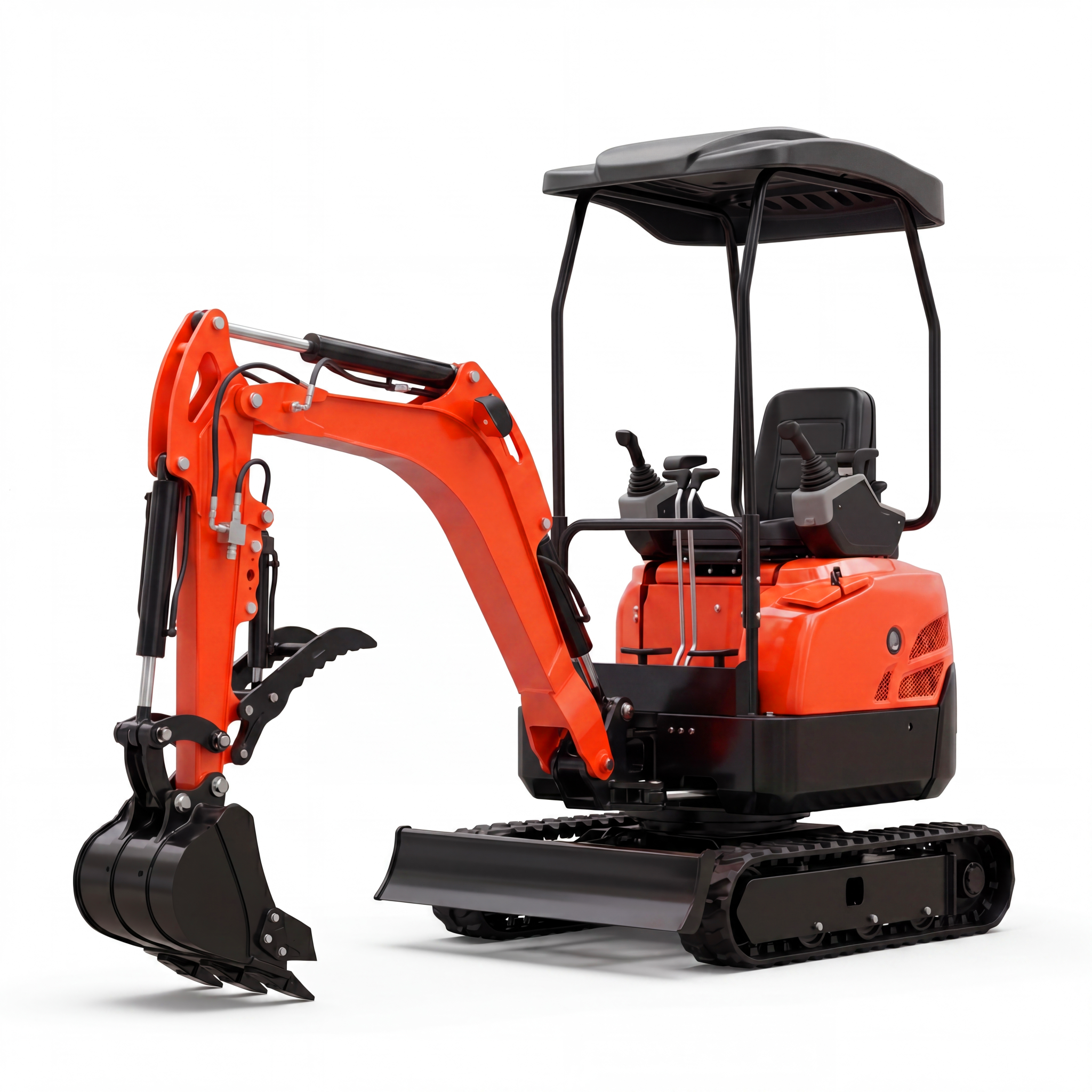

Deep Digging Excavators: What Deep Dig Really Means by Machine Class

"Deep digging" is one of those phrases that means different things depending on who is holding the spec sheet. A landscape contractor might mean a 1.2 metre foundation trench; a drainage crew might mean three metres to a sewer connection; a utilities team might mean more. Understanding what a deep digging excavator can actually reach — and what happens to stability, cycle time and safety as depth increases — is the difference between a productive dig and a dangerous one.

This guide defines deep digging by machine class, explains the configurations that extend reach, and sets out where a compact machine stops being the right tool.

What Counts as Deep, by Machine Class

Depth is relative to the machine. A one-tonne micro machine reaching 1.7 to 2 metres is working at the limit of its design. A two-tonne machine typically reaches around 2.2 to 2.6 metres. A three-tonne class machine commonly works in the 2.8 to 3.2 metre band. Beyond roughly four metres, you are no longer in compact territory at all — you are in standard excavator or long-reach territory, and the job needs a different machine, a different transport plan and usually a different operator ticket.

Maximum Depth vs Working Depth

The headline dig-depth figure in a specification sheet is a geometric maximum measured under ideal conditions: machine level, bucket curled, dipper vertical. Real working depth is always less, because you need clearance to swing, room to spoil, and a safe distance from the trench edge. As a practical rule, treat roughly eighty to ninety per cent of the published maximum as the depth you can work at productively. Digging to the absolute limit is slow, and it places the machine at the least stable point in its operating envelope.

Configurations That Extend Depth

Three approaches increase dig depth without changing machine class. A longer dipper arm is the most common: it trades breakout force for reach, so the machine digs deeper but slower in heavy material. A long-reach or deep-sewer configuration replaces both boom and dipper and is designed specifically for depth work, usually with a narrower bucket and reduced counterweight clearance requirements. A telescopic dipper offers adjustable reach, which is useful where depth varies along a run, at the cost of additional maintenance. Each option reduces the load the machine can lift at full extension, so check the revised lift chart before you buy.

What Happens to Stability at Depth

As the dipper extends, the centre of gravity moves forward and the machine's safe working load falls away sharply. On compact machines, the usual failure is not a tip-over but a gradual loss of control: the tracks lift slightly, the machine rocks on each cycle, and the operator compensates by working slower. Keep the tracks perpendicular to the trench where possible, keep spoil on the opposite side from any surcharge, and never position the machine so the cab is over the excavation. Where depth exceeds the machine's design envelope, benching the dig — working in two stages with the machine set back — is safer and often faster than reaching.

Specification Checklist for Deep Work

• Maximum dig depth — published figure, then the eighty per cent working rule.
• Reach at ground level — decides where spoil can be placed without rehandling.
• Lift capacity at full extension — the number that limits bucket size at depth.
• Bucket width at depth — narrow trenching bucket reduces cycle load.
• Boom and dipper configuration — standard, long dipper or long-reach front.
• Transport height and length — long-reach fronts change transport dimensions.
• Auxiliary circuit — needed if you will run a breaker at depth.

Matching the Machine to the Job

For most residential and light commercial work — footings, service runs, soakaways — a two-tonne class machine covers the depth requirement comfortably. Step up to three tonnes when depths approach three metres or when the material is heavy. Consider a long-reach configuration only when depth work is a repeating part of your schedule, because the conversion reduces the machine's general-purpose capability. And when depth exceeds about four metres, or when the trench must be entered, bring in a larger machine and a proper shoring plan.

Soil Conditions and How They Change Depth Work

Depth capability and ground condition interact more than most specification sheets suggest. In free-flowing sand and gravel a machine reaches its published depth easily, but the trench walls are unstable and require battering or shoring much earlier. In stiff clay the machine can dig a near-vertical face, yet the material loads heavily and a wide bucket at depth will stall the hydraulics. In wet ground the effective depth drops because material slumps back into the cut and the operator spends cycles clearing the floor. In broken rock or heavily compacted fill, a standard bucket may not penetrate at all at depth, and a breaker or a heavy-duty narrow bucket becomes the limiting factor rather than the geometry. Water is the single biggest variable: a trench that stands dry in the morning can fail after an afternoon of rain or a burst service. Plan depth work with the soil in mind, and treat the published dig depth as an upper bound that only applies in favourable material.

Choosing Equipment for Depth

Compare published dig depth, reach and lift-at-extension across the class you are considering. Models such as the SDLE42 and the SDLE25 sit at different points on that curve; reviewing them side by side in the mini excavator collection makes the trade-off between depth and breakout force visible before you commit.
