Micro Digger Dig Depth: Trenching, Utilities, and Soil Conditions
For utility and landscaping work, the useful question is not only “how deep can it dig?” It is “how deep can it dig safely, at the required width and reach, with the soil and access conditions on this site?” A micro digger may have enough depth on paper but still need repositioning, a different bucket, or additional trench protection.
This article focuses on real trenching and utility applications. The current SDLE10 product page is used as a verified example.
Match depth to the service or structure
Different jobs require different depths. Irrigation lines, drainage, cable ducts, footings, and planting holes each have their own trench width and bedding requirements. Check the project specification and local rules before selecting a machine.

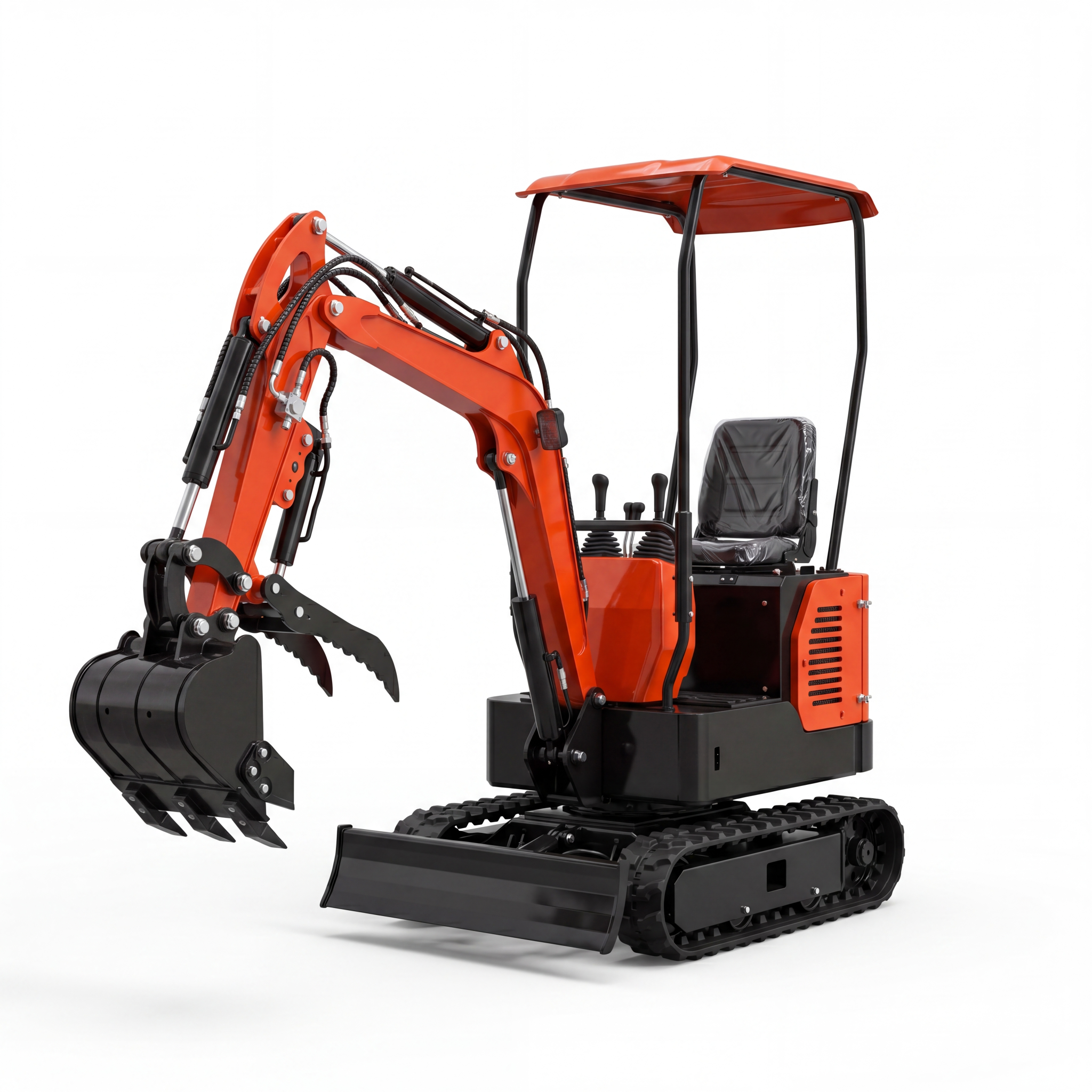

The SDLE10 page lists a 1700 mm maximum digging depth, 2920 mm maximum digging radius, 0.67 t operating weight, and 0.02 m³ bucket capacity. These specifications were checked on September 17, 2026. They describe the machine’s reach with the published configuration, but the final working depth still depends on bucket and ground conditions.
Trench width and bucket choice
A narrow bucket is useful for utility trenches and minimal disturbance, while a wider bucket moves more material but may require more power and create a larger opening. Confirm the bucket width and tooth configuration for the job. A bucket that is too wide for the pipe or cable bedding can increase backfill and surface repair work.
| Task | Depth priority | Practical check |
|---|---|---|
| Irrigation trench | Shallow to medium | Line depth and soil cover |
| Drainage | Fall and outlet depth | Gradient and water flow |
| Utility cable | Specified cover | Locating and separation rules |
| Footing | Structural design | Width, bearing soil, and inspection |
Soil, water, and trench stability
Sandy or loose soil can collapse easily. Clay may be firm but sticky, while rocky ground can damage teeth and slow progress. Groundwater changes both stability and the time available to complete the work. Use appropriate shoring, shielding, or battering where required, and keep the machine at a safe distance from the trench edge.
A micro digger is often selected for confined spaces, but that does not reduce the need for safe excavation practice. If the trench is deep or the soil is unstable, use proper protection and keep people out of the excavation.
Working around existing services
Use approved locating methods before digging. Hand-dig near marked services where required. Keep the bucket under control and avoid rapid swings that could strike a wall, pipe, or person. Establish an exclusion zone and keep the spoil outside the working area.
Access and transport for deeper work
Deeper digging produces more spoil and may require a larger machine or additional transport. Check whether the access route can support the machine, whether spoil can be removed, and whether the trench can be reached from both ends. If the machine must work from one position, verify the reach at the required depth.
For a broader comparison, read how to match machine class to dig depth and access.
Maintenance after trenching
Clean soil from the tracks, inspect the bucket teeth and hydraulic hoses, and check track tension. Replace worn cutting edges and damaged pins. A machine used in abrasive or wet ground needs more frequent inspection than one working in light landscaping soil.
Verifying achievable depth on site
A practical depth check starts with a test excavation in representative soil. Mark the target depth, dig with the intended bucket, and observe the machine’s stability and spoil removal. Confirm that the operator can see the trench bottom and that the bucket can clear the spoil. If the machine reaches the number only at an unsafe angle, a larger class may be required.
Record the actual depth and the soil conditions for future planning. If groundwater or hard material appears, stop and reassess the method.
Backfill and reinstatement
Backfill in controlled layers and compact according to the project requirements. Use suitable bedding and protection for pipes or cables. Keep heavy machines away from the trench edge until the fill is stable enough to support them. Reinstatement quality matters as much as digging depth.
A clean, well-graded backfill also reduces settlement and future repair work. Photograph the installed service before closing the trench where the project procedure allows.
Daily planning checklist
- Confirm the target depth, width, and gradient.
- Verify the machine and bucket work envelope.
- Locate all underground services.
- Check access, spoil removal, and ground stability.
- Plan trench protection and exclusion zones.
- Record the actual depth and site conditions after work.
This checklist keeps the focus on the complete job instead of a single maximum-depth number. It also gives the operator a clear reason to stop if conditions differ from the plan.
If the machine cannot complete the trench safely in one setup, consider a larger class or split the work into accessible sections. Repositioning the machine is acceptable when it improves stability and visibility; forcing a long reach is not.
Before each shift, inspect the bucket, hoses, tracks, and control response. A small hydraulic leak or damaged tooth can affect depth control and production. Correct maintenance is part of achieving the published performance.
Conclusion
Micro digger depth is only one part of trench planning. Confirm the depth, width, reach, bucket, soil, groundwater, and safety method. The current product page should be checked for the exact configuration before the machine is ordered.
