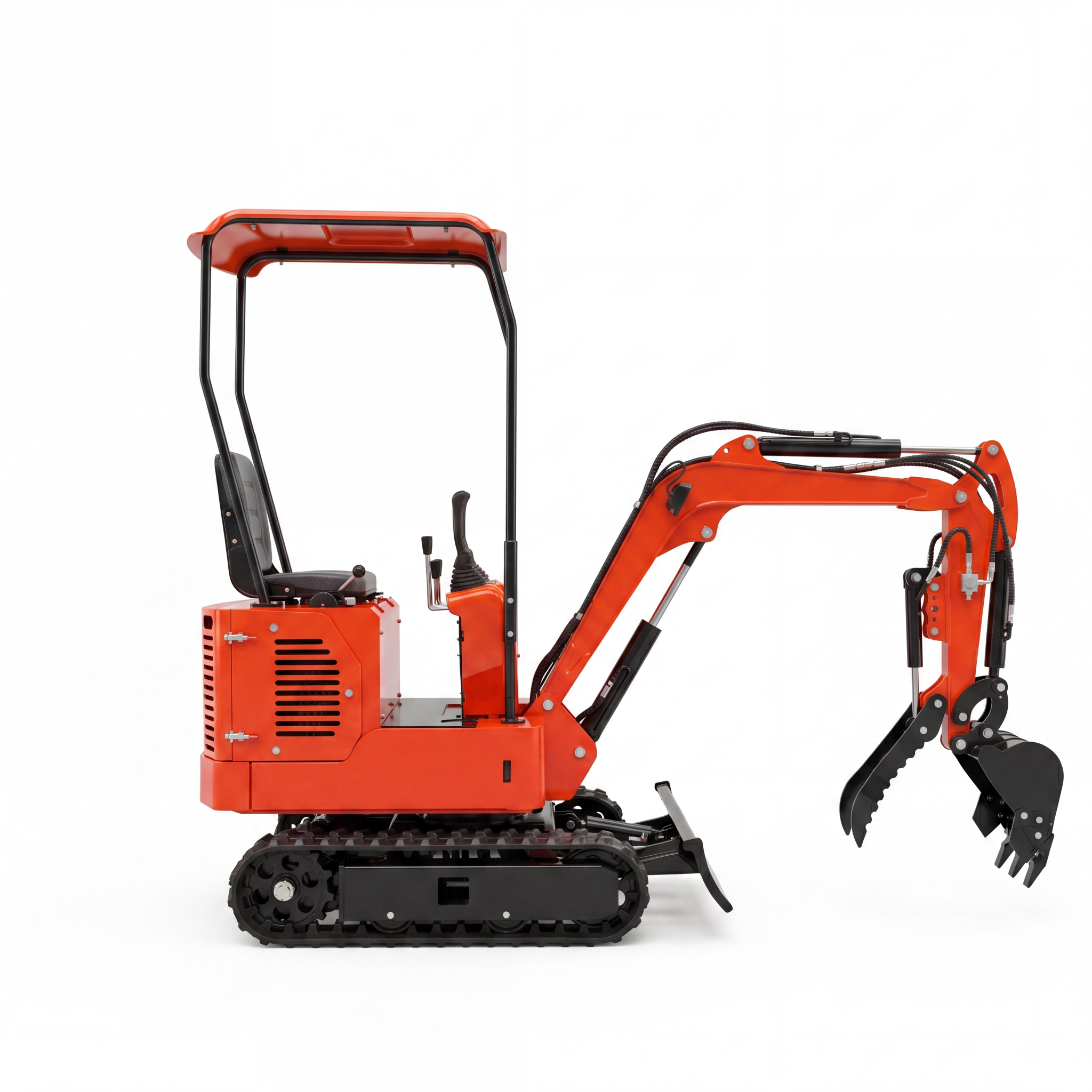

Narrow Access Excavators: Getting a Machine Through Gates and Doorways
The most common reason a small machine gets hired is not digging power — it is access. A backyard landscaping job, an indoor strip-out, a garden wall rebuild: the work is easy, and getting the machine to the work is the whole problem.
This guide covers how to get a compact excavator through gates, passages and doorways without damaging the property, the machine, or the relationship with the client.
Start With a Site Walk, Not a Machine
Measure first, hire second. The four numbers that decide everything:
| Measurement | Why it matters | How to take it |
|---|---|---|
| Clear opening width | The machine's transport width must fit with clearance | Between the gate posts or jambs, not the gate leaf; check both ends of a passage |
| Height limit | Canopy, ROPS or overhead obstruction | Lowest point along the route — cables, lintels, pipework |
| Turning space | 90° turns need more width than straight runs | Walk the route with a tape at the corner; note whether the turn is inside or outside |
| Ground bearing | Soft lawn and gravel will rut and may trap the machine | Press a heel in; if it sinks, plan for mats or plates |
Take photographs at each point. When you send them to a dealer or hire company, they can tell you within minutes whether a given machine will fit — and if it does not, you have saved a delivery fee.
What Actually Fits Through a Standard Gate
A standard UK or European single garden gate is nominally 900 mm wide, but the clear opening between posts is often 850–880 mm once hinges and furniture are accounted for. That leaves:
- Micro machines, 700–780 mm: comfortable through a single gate, and many will pass a 800 mm internal doorway.
- 0.8–1 t machines, 720–900 mm: most fit a single gate, but with little margin — measure the specific model, not the class.
- 1 t and above, 900 mm+: usually needs double gates or a removable fence panel.
Always work to the model's published transport width. Machines with a variable-gauge undercarriage may be delivered retracted but still have a wider upperstructure, so check both.
Protecting the Route
Rubber tracks are the single best access feature on a compact machine, and for domestic work they are effectively mandatory. Steel tracks will damage paving, driveways and lawns, and the repair bill usually exceeds the hire saving. Where the route crosses a lawn or soft ground:
- Lay scaffolding boards, plywood or track mats along the route before the machine moves.
- Keep boards overlapping in the direction of travel so the machine does not catch an edge.
- Avoid turning on the spot on soft ground — it tears the surface and can throw a track.
- Plan the exit route as carefully as the entry. Ground that was firm on the way in is often churned on the way out.
Working in Confined Spaces
Once inside, the constraint usually flips from width to swing. A conventional compact machine sweeps its counterweight beyond the track width when slewing, which near a wall means constantly repositioning or risking damage.
Three features solve this:
- Zero or short tail swing. The counterweight stays inside the track width, so the machine can slew fully against a wall or fence.
- Offset boom. Lets you dig a straight trench parallel to a wall without moving the machine — essential for footings and drainage runs.
- Variable-gauge undercarriage. Retract to pass through the access, extend once inside to restore stability.
Also consider where the spoil goes. In a narrow garden there is rarely room to pile spoil beside the trench, which means barrowing it out or planning a second handling step. That labour, not the digging, is what dominates time on tight-access jobs.
Indoor and Structural Work
Machines working inside buildings add two considerations. Ventilation: a diesel engine in an enclosed space needs forced air movement, and in some cases an electric or battery machine is the only compliant option. Floor loading: check the slab can carry the machine plus spoil, particularly over a suspended floor or a cellar.
Remove doors before the machine arrives rather than working around them, and confirm the route has no step or threshold the tracks will catch on.
Access Checklist for Delivery Day
- Park the delivery vehicle legally and close enough to offload.
- Have the gate fully open and any obstacles moved the day before.
- Confirm the driver has the route measurements and a contact on site.
- Check the machine's rubber tracks are in good condition before it is unloaded.
- Photograph the route condition before and after — for everyone's protection.
Machines Built for Tight Access
If access is the deciding factor on most of your jobs, it is worth owning a machine specified for it: narrow transport width, rubber tracks, offset boom and short tail swing. Our mini excavator collection publishes transport width on every model; the SDLE10 and SDLE08 cover the narrowest access cases, while the SDLE15 adds reach and breakout force where the access allows it.
