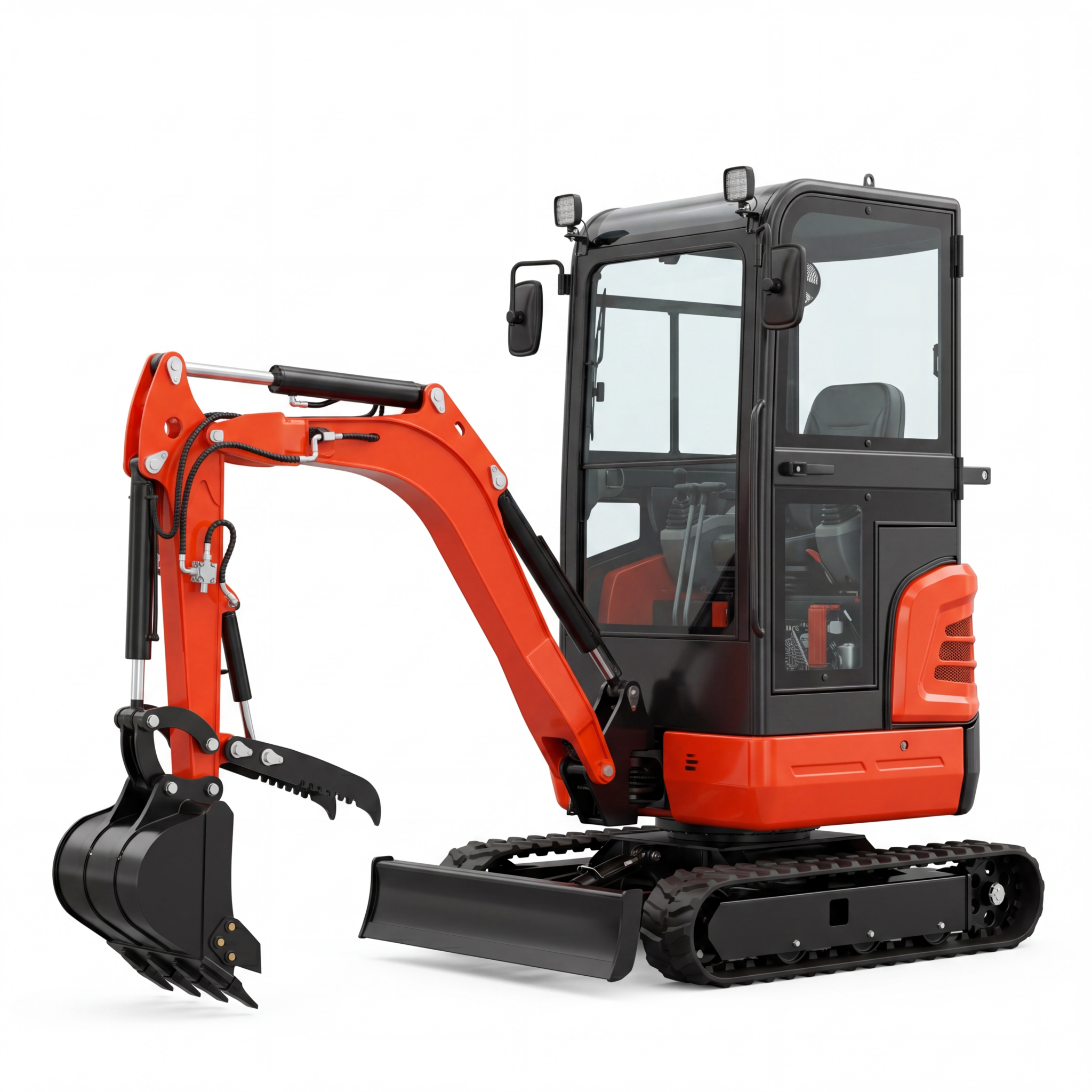

How to Choose and Fit the Right Bucket Connection on a Mini Excavator
Fitting a bucket to a mini excavator looks simple until the first time it does not fit. Pin centres are 8 mm out, the dipper nose is 6 mm too wide, or the link will not reach the second hole — and the machine sits idle while a new bucket is ordered. This walkthrough takes you from measuring your machine to confirming a safe, fully engaged connection, in the order an experienced fitter would do it.
Work slowly through the measurement step. Almost every compatibility problem on a compact machine traces back to a number someone assumed instead of measured.
Step 1: Identify Your Current Connection Type
Look at how the existing bucket joins the dipper. If two pins pass directly through the dipper nose and the link, you have a direct pin-on mount. If there is a separate frame between the dipper and the bucket, you have a coupler, and you need to know whether it is operated by a spanner or by hydraulics.
Take photographs from both sides before you remove anything. These become your reference if a part is misplaced, and they make it far easier to get accurate advice from a supplier.
Step 2: Measure the Four Numbers That Decide Fit
Four dimensions determine whether an attachment will fit a compact machine. Measure all four twice, and record them in a note you keep with the machine's documents.
| Dimension | How to measure | Typical range, 1 – 3.5 t | Why it matters | Common error |
|---|---|---|---|---|
| Pin diameter | Caliper across the bare pin | 25 – 45 mm | Boss bore must match exactly | Measuring the boss, not the pin |
| Pin centres | Centre-to-centre of the two pins | 90 – 180 mm | Defines the mounting standard | Measuring edge to edge |
| Dipper nose width | Outside width of the dipper casting | 100 – 200 mm | Bucket bosses must straddle it | Ignoring worn shims |
| Link length | Centre-to-centre on the link | 120 – 260 mm | Sets bucket rotation geometry | Assuming all links match |
Wear changes these numbers. A pin that has run dry for a season can be a millimetre under nominal, and worn boss bores open up by more. If your measurements sit at the edge of a published standard, plan to replace the pins at the same time as the bucket.
Step 3: Decide Direct Mount or Coupler
If you run one bucket, a direct pin-on mount is stiffer, lighter and cheaper. If you expect to add a second and third tool, fitting a coupler now is far cheaper than converting later, because the conversion also means re-engineering every bucket you already own.
When you choose a coupler, confirm two extra items: that the machine has a spare auxiliary service if you want hydraulic operation, and that the coupler's pick-up standard matches the buckets you intend to buy. Mixing standards inside one fleet defeats the purpose.
Step 4: Check Hydraulic Provision Before Ordering
A hydraulic coupler needs a pressurised service at the dipper nose. On many compact machines the auxiliary circuit already runs there for a thumb or breaker, which means you may need a diverter valve or a solenoid change-over rather than a completely new circuit.
Check three things: available flow in litres per minute, whether the service is single- or double-acting, and how the line is routed down the boom. Poor routing is the most common cause of hoses chafing through within a season.
Step 5: Fit and Torque Correctly
Clean every mating surface before assembly. Support the bucket on timber blocks rather than letting it hang, so the pins slide in by hand rather than under load. Never drive a hardened pin with a hammer directly on the thread or the hardened face — use a soft drift or a pin driver.
Fit retaining bolts to the manufacturer's torque figure and secure them with the specified method, whether that is a lock nut, a split pin or a bolt-through retainer. A pin retained by nothing but friction will eventually walk out, and the consequences are serious.
Grease Before the First Cycle
Grease the pins and bosses thoroughly before the first working cycle, then again after the first hour. Fresh grease displaces the assembly lubricant and carries away any debris introduced during fitting. This single habit is the difference between pins that come out next year and pins that need cutting out.
Step 6: Prove the Connection Before Work
With the bucket fitted, run a deliberate proving sequence. Curl the bucket fully in and out through its whole range, check for contact between the bucket and the dipper at full curl, then apply breakout force against a bank and listen for movement in the mount.
Finally, lift the bucket clear of the ground and shake it gently. Anything loose will show as a click or a visible shift at the pins. Repeat this check at the start of every day, and immediately after any change.
Mistakes That Cost Time and Money
- Ordering a bucket by machine model alone instead of by measured pin centres.
- Mixing pick-up standards across attachments so nothing is interchangeable.
- Running a hydraulic coupler without a pressure-loss lock, which is a compliance risk in many regions.
- Skipping the diverter valve and discovering the thumb and coupler cannot both be plumbed.
- Fitting pins dry and finding them seized at the next change.
- Ignoring the coupler wedge adjustment until the bucket visibly rattles.
- Adding nose weight without re-checking the lift chart at full reach.
How Long Each Option Takes to Live With
Budget realistically. A direct pin-on change on a compact machine takes one person plus a helper between ten and twenty minutes, including greasing and proving. A mechanical coupler change takes two to five minutes with no helper. A hydraulic coupler change takes under a minute but needs the auxiliary circuit checked weekly and the lock mechanism inspected daily.
Multiply those figures by the number of changes you make per week and the right choice usually becomes obvious — which is why measuring your own change frequency is the most valuable five minutes of the whole exercise.
